Stator Pickup Pulsar Coil for Can-Am DS 650 Baja / Baja X 2000-2007
RMSTATOR
SKU: RM00129
Out of stock
RMSTATOR
Stator Pickup Pulsar Coil for Can-Am DS 650 Baja / Baja X 2000-2007
Sold out
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
Stator Pickup Pulsar Coil for Can-Am DS 650 Baja / Baja X 2000-2007
Sold out
Details
Details

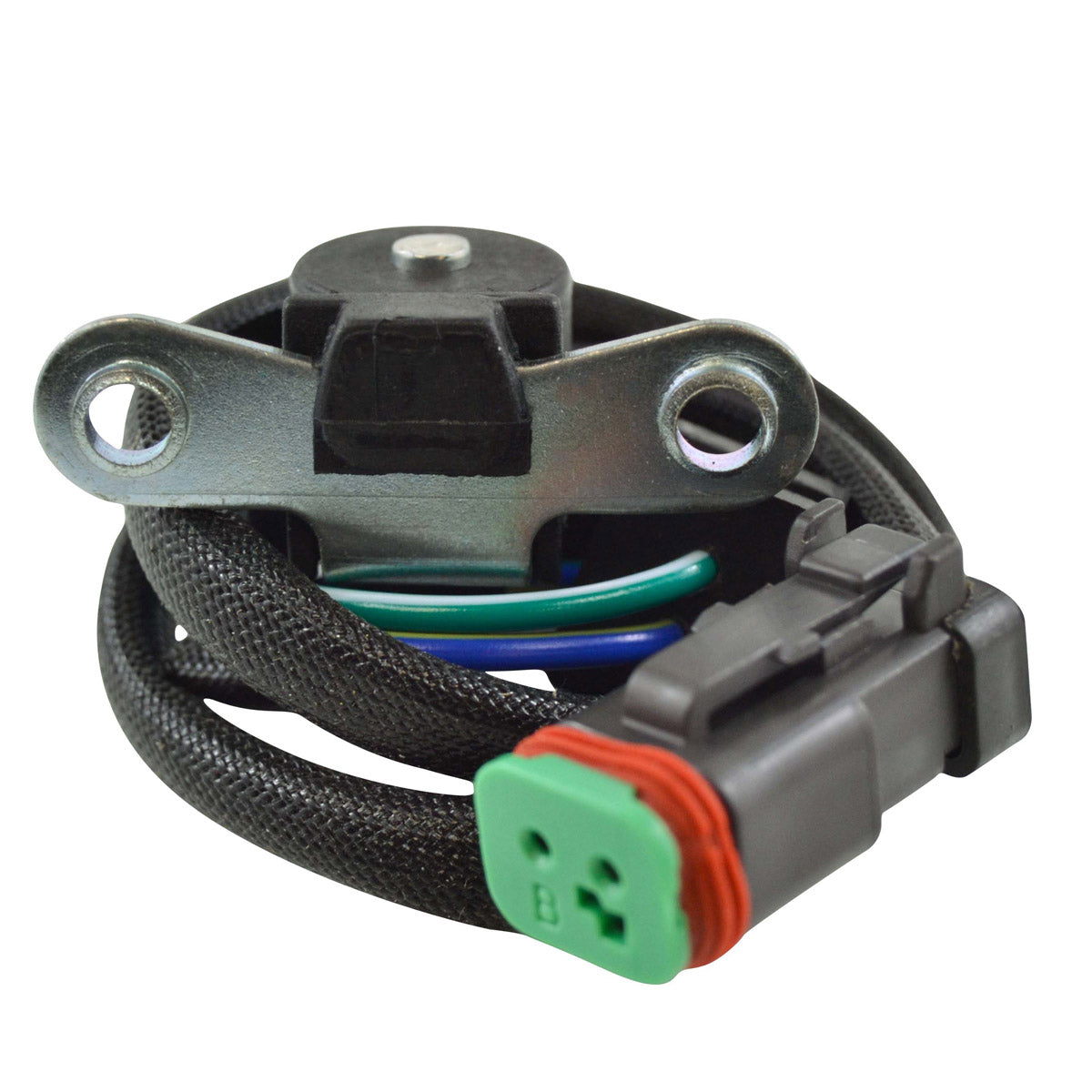

Brand new pick up coil for stator 300 ohms
- We offer a brand new pickup/pulsar coil for you to repair your stator.
- Often unavailable from the OEM manufacturer
- All products shipped are tested
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications
Specifications
Dimensions:
Height: 22 mm
Length: 25 mm
Width: 23 mm
Bracket center to center: 35 mm
Wires length pickup coil to grommet: 25 mm
Wires length grommet to plug: 400 mm
Other specifications:
Number of wires : 2
Number of plugs: 1
Number of pins: 2
Wire to wire resistance:
Green/White to Blue/Yellow = 295 ohms +/-20%
Height: 22 mm
Length: 25 mm
Width: 23 mm
Bracket center to center: 35 mm
Wires length pickup coil to grommet: 25 mm
Wires length grommet to plug: 400 mm
Other specifications:
Number of wires : 2
Number of plugs: 1
Number of pins: 2
Wire to wire resistance:
Green/White to Blue/Yellow = 295 ohms +/-20%
Interchange Part Nº
Interchange Part Nº
- 711265153
- 420265153
- 711265156
Installation
Installation
Not following these instructions may result in damaging the part or other components on your vehicle.
- By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
- Insulate your solders with heat shrink.
- Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
- Rotate the flywheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010’’.
- If no spark or erratic spark, switch the wires at the plug.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
