Pickup Coil 236 ohms for Kawasaki KFX 450 R | Polaris 500 600 RMK / XC SP | Suzuki VStrom 650 1999-2016 | 4011449
RMSTATOR
SKU: RM00158
In Stock
RMSTATOR
Pickup Coil 236 ohms for Kawasaki KFX 450 R | Polaris 500 600 RMK / XC SP | Suzuki VStrom 650 1999-2016 | 4011449
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
Pickup Coil 236 ohms for Kawasaki KFX 450 R | Polaris 500 600 RMK / XC SP | Suzuki VStrom 650 1999-2016 | 4011449
Details
Details

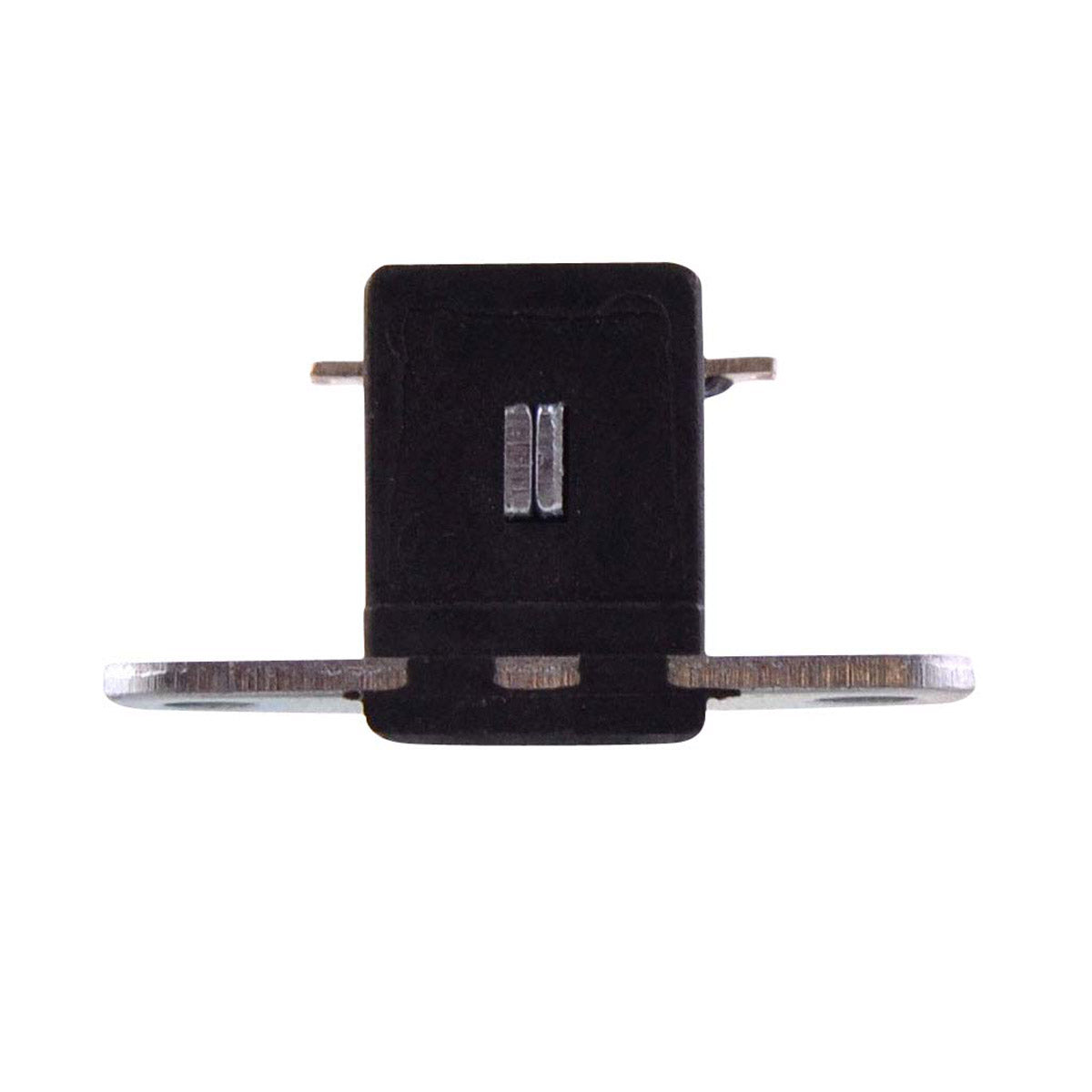

Brand new pick up coil for Stator 236 ohms
- We offer a brand new pickup/pulsar coil for you to repair your stator.
- Often unavailable from the OEM manufacturer
- All products shipped are tested
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications
Specifications
Dimensions:
Bracket center to center: 35mm
Wires length : 940mm
Other specifications:
Number of wires: 2
Color of wires: White Blue/Yellow
Number of pins: N/A
Wire to wire resistance:
White to Blue/Yellow = 236 ohms+/-20%
Bracket center to center: 35mm
Wires length : 940mm
Other specifications:
Number of wires: 2
Color of wires: White Blue/Yellow
Number of pins: N/A
Wire to wire resistance:
White to Blue/Yellow = 236 ohms+/-20%
Interchange Part Nº
Interchange Part Nº
- 21003-0067
- 4060222
- 4011449
- 32101-17G10
- 32101-17G11
- 32101-17G12
- 32101-17G13
Installation
Installation
Not following these instructions may result in damaging the part or other components on your vehicle.
- By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
- Insulate your solders with heat shrink.
- Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
- Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010’’.
- If no spark or erratic spark, switch the wires at the plug.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
