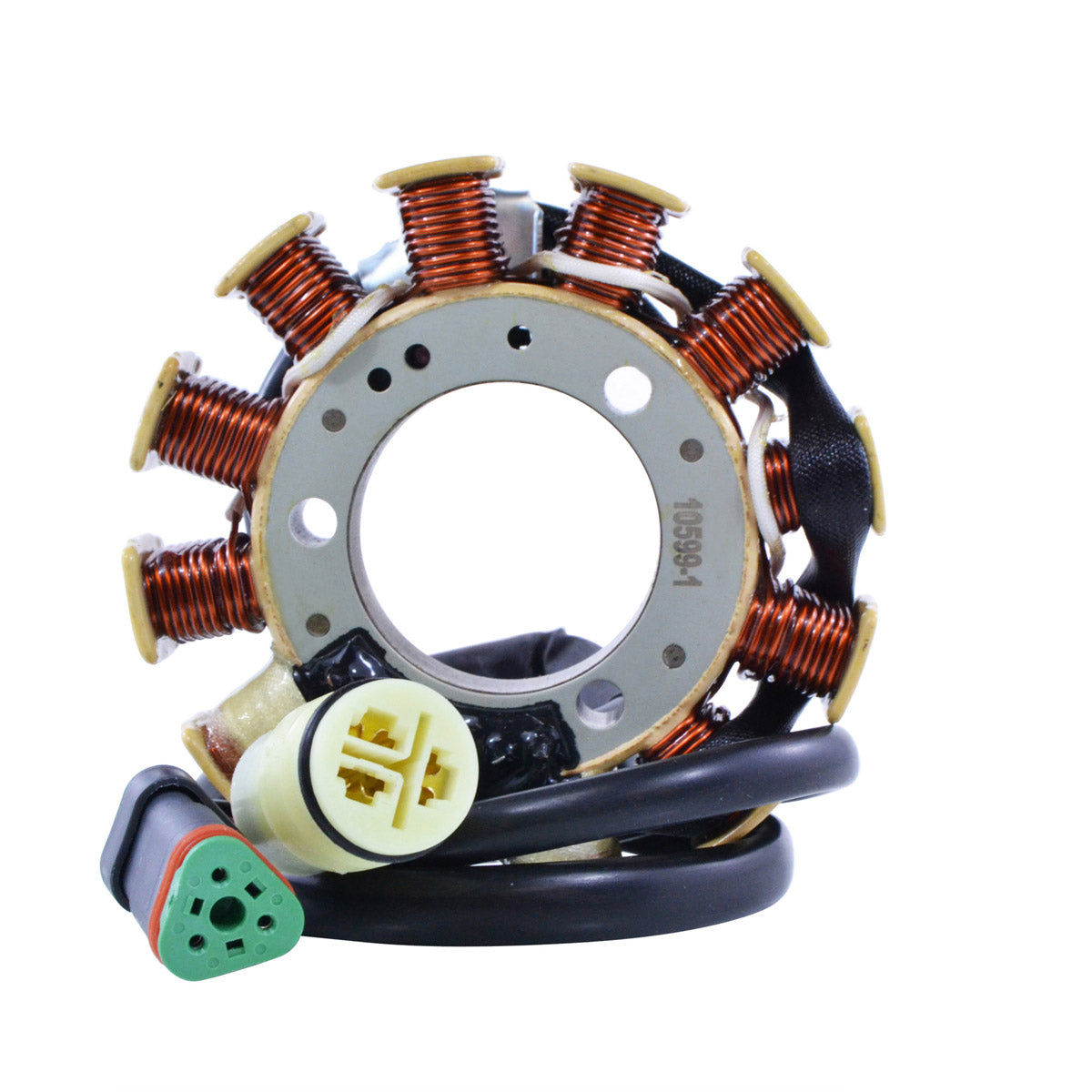

Stator for Ski-Doo Formula Grand Touring MX-Z Skandic 500 600 700 800 1999-2007 | Lynx 500 600 2000 2001 | 410922936

$USD 229.00
Availability: In stock
SKU
RM01008

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

410922914
410922949
410922936
410922923
410922934
410922915
420888619
420888613
Dimensions :
Interior diameter : 40 mm
Exterior diameter : 103 mm
Thickness : 20mm
Length of wires stator to plug: 400 mm

Other specifications :
Number of wires : 6
Number of plugs : 2
Number of pins : 6

Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4 ohms+/-20% Source : Red to Black/Red = 18 ohms+/-20%

Before installing your new stator

  • Check the AC output of the stator.
  • Replace any burned or corroded connectors on stator and regulator/rectifier
  • Check and repair any melted wiring.
  • Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010’’.

Brand new stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Connector included
  • All product shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
