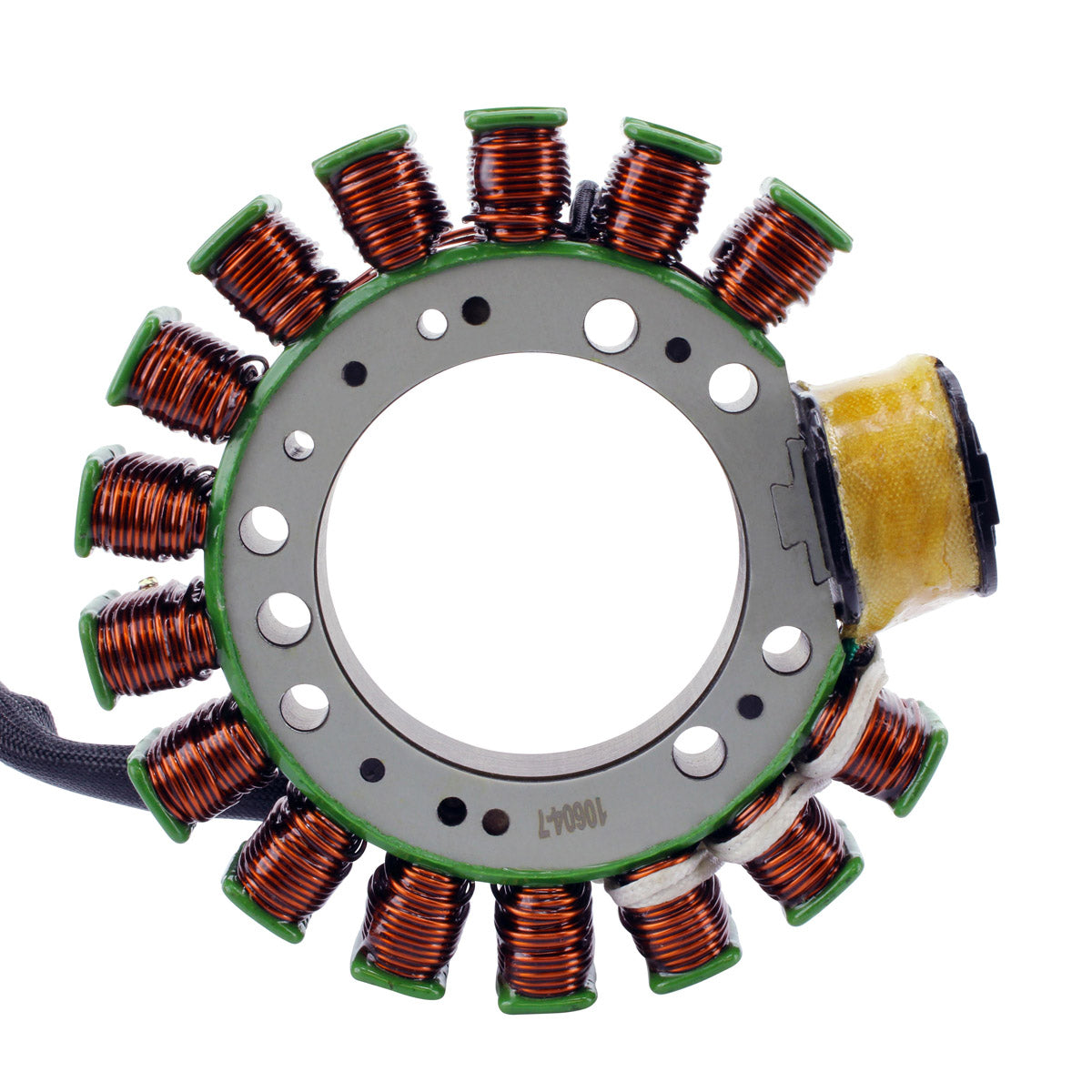

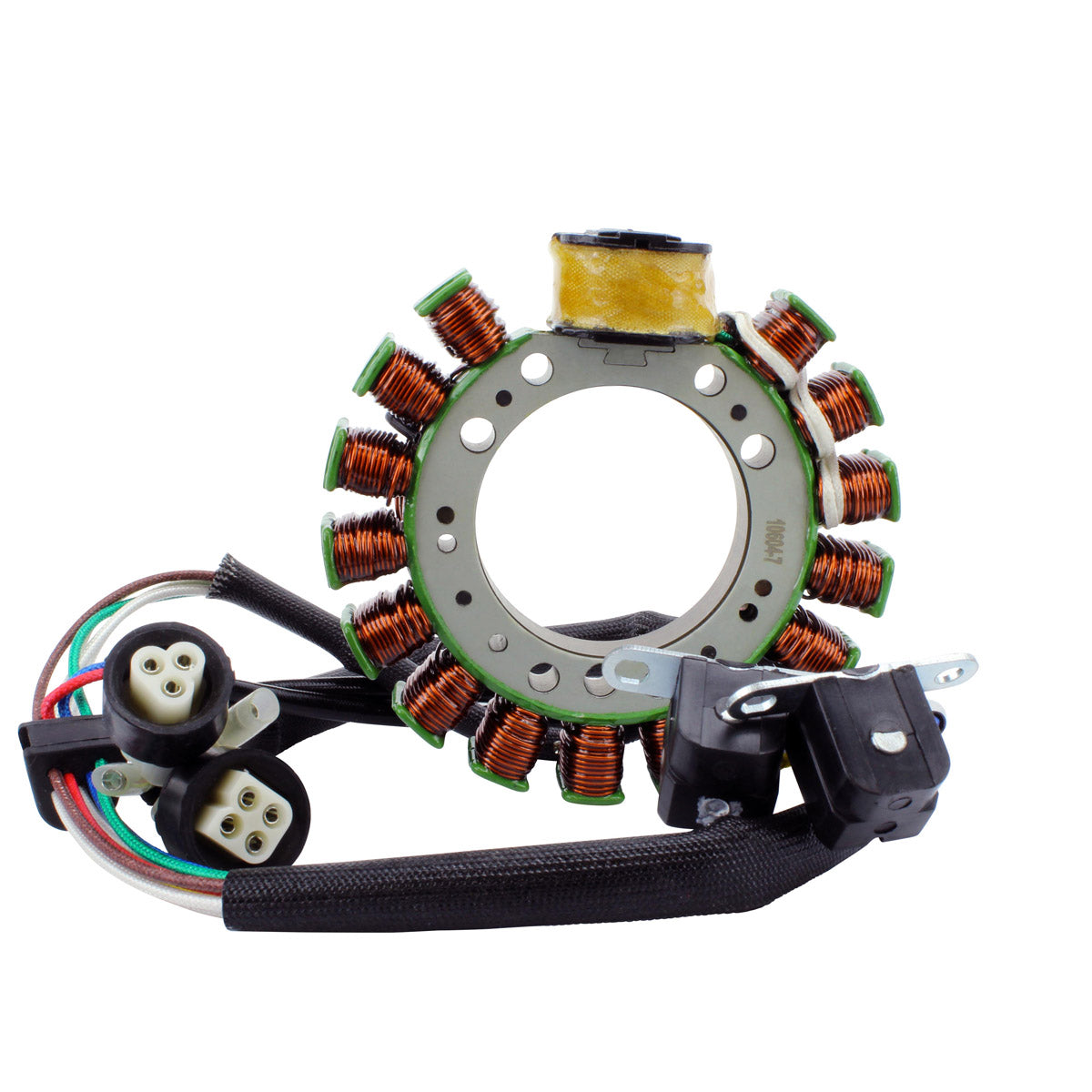

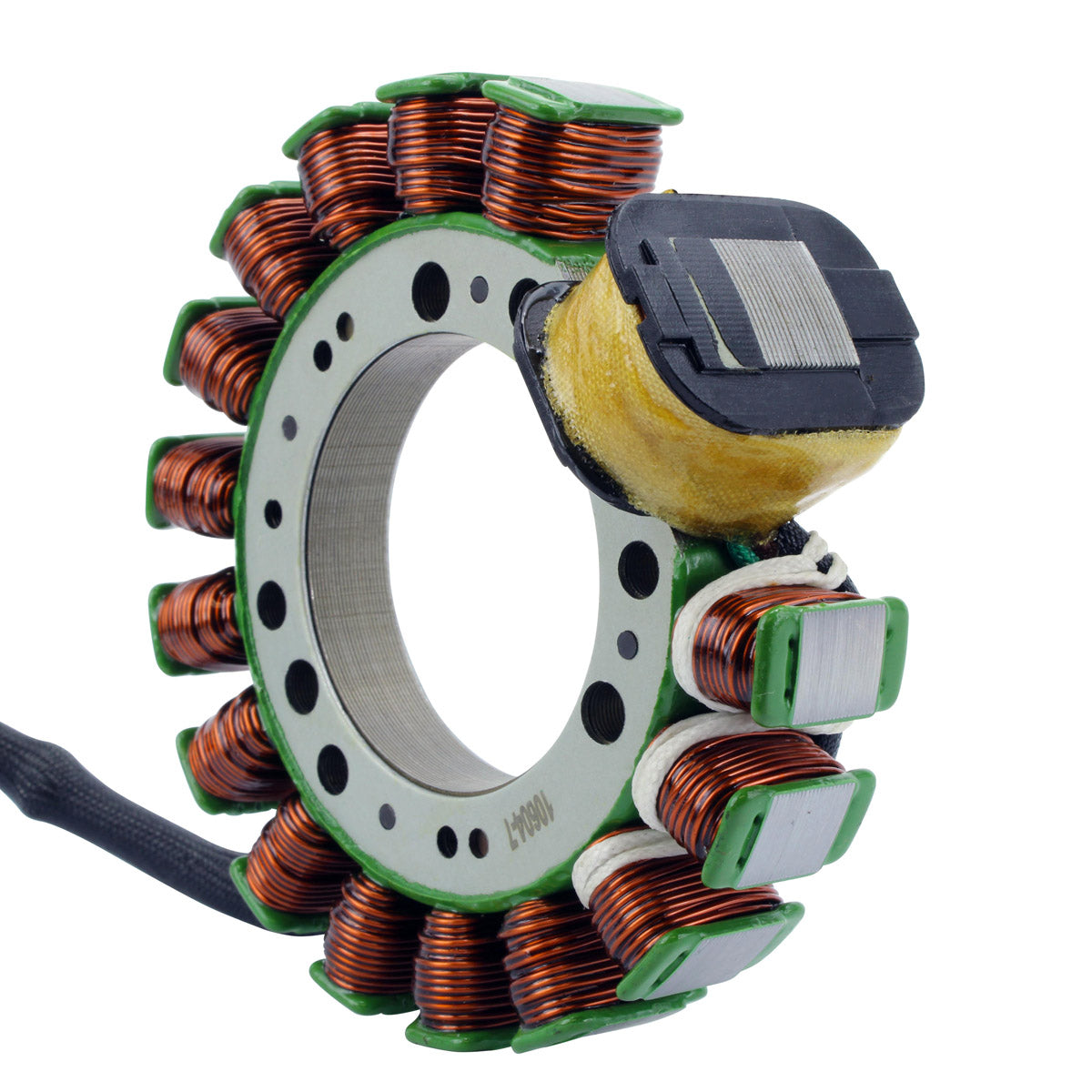

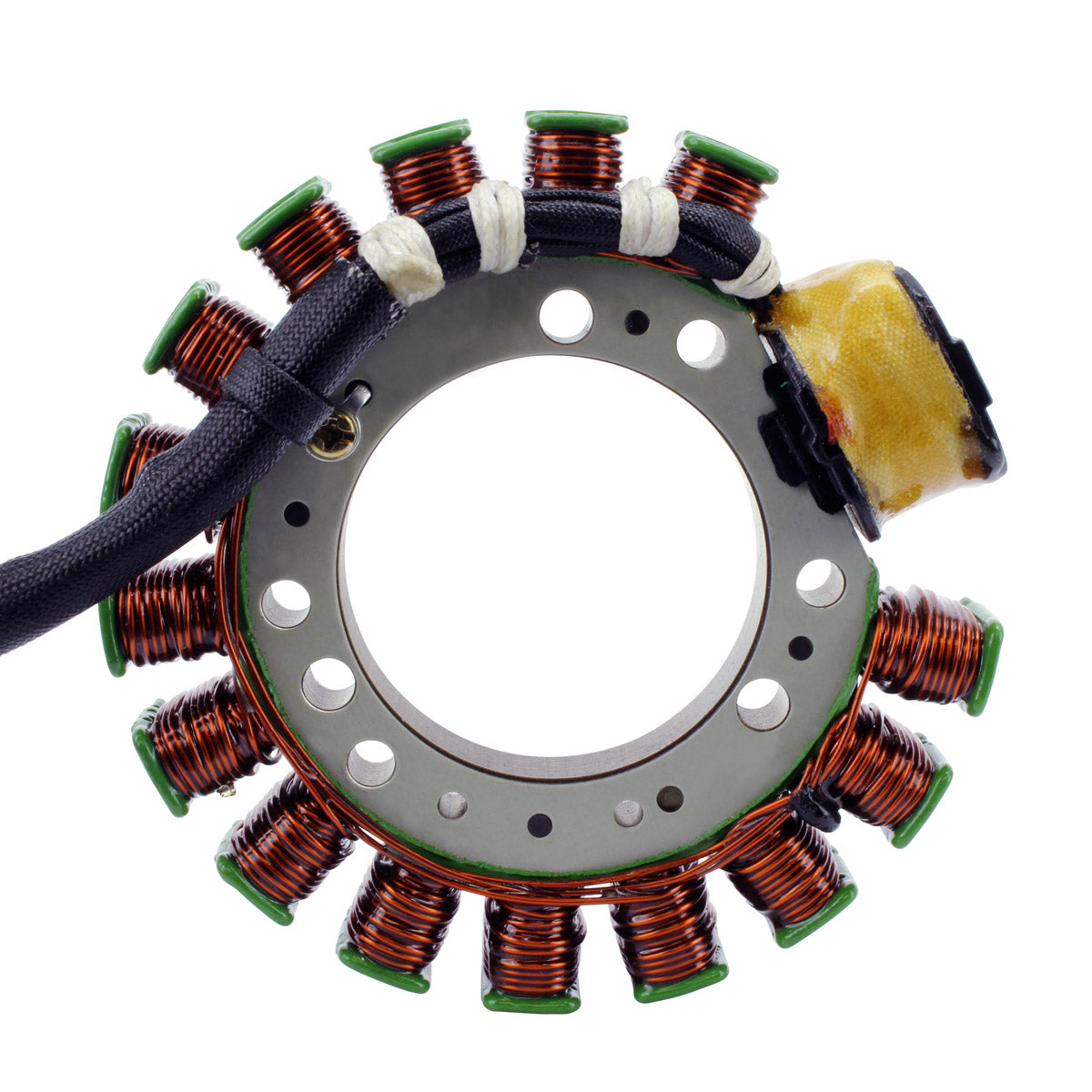

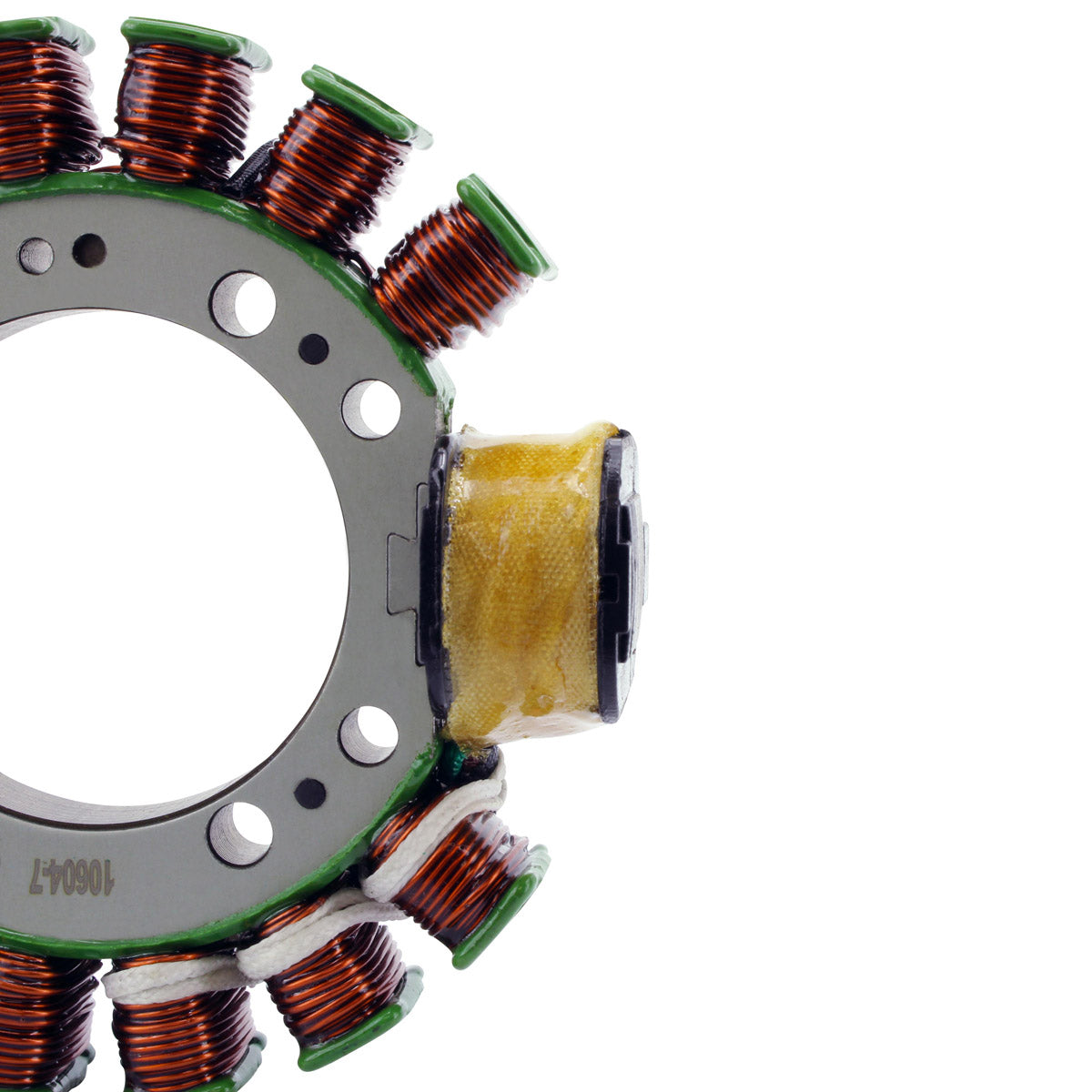

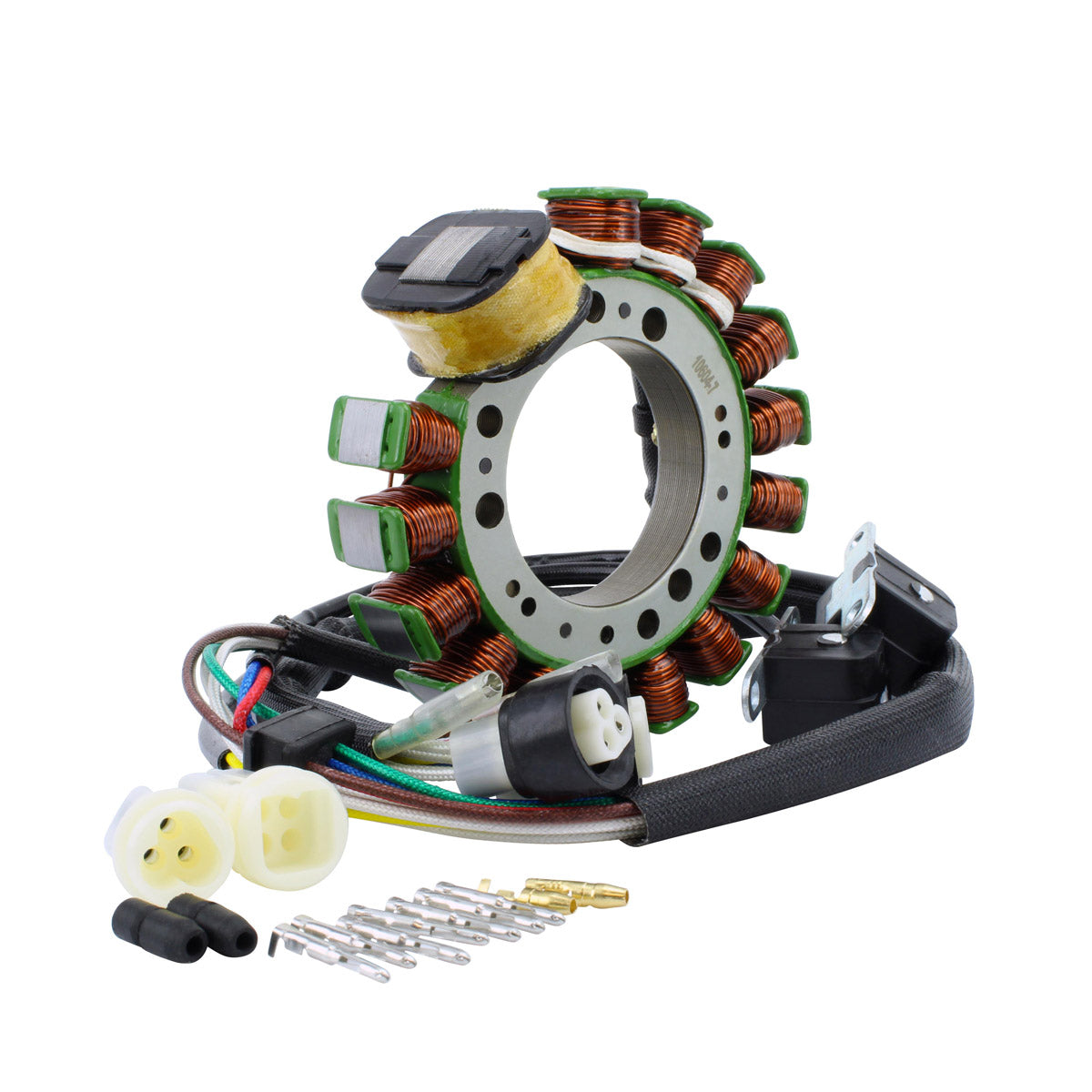

Stator for Yamaha YFM 350 Big Bear / YFM 350 Warrior 1987-1989
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
2XK-85510-20-00
Dimensions:
Interior diameter: 53 mm
Exterior diameter: 115 mm
Thickness: 14 mm
Length of wires stator to grommet: 200mm
Length of wires grommet to plug: 475mm
Length of wires pickup coil's wire to grommet: 220mm
Other specifications:
Number of wires : 9
Number of plugs: 4
Number of terminals : 9
Wire to wire resistance:
Alternator : White between each White = 0.4 ohms+/-20%
Pick up : Red to Blue = 221 ohms+/-20%
Pick up :Yellow to White = 217 ohms+/-20%
Source : Brown to Green = 315 ohms+/-20%
Please note : The pick up coil with the white dot has to be installed on top
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".
Brand new stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.

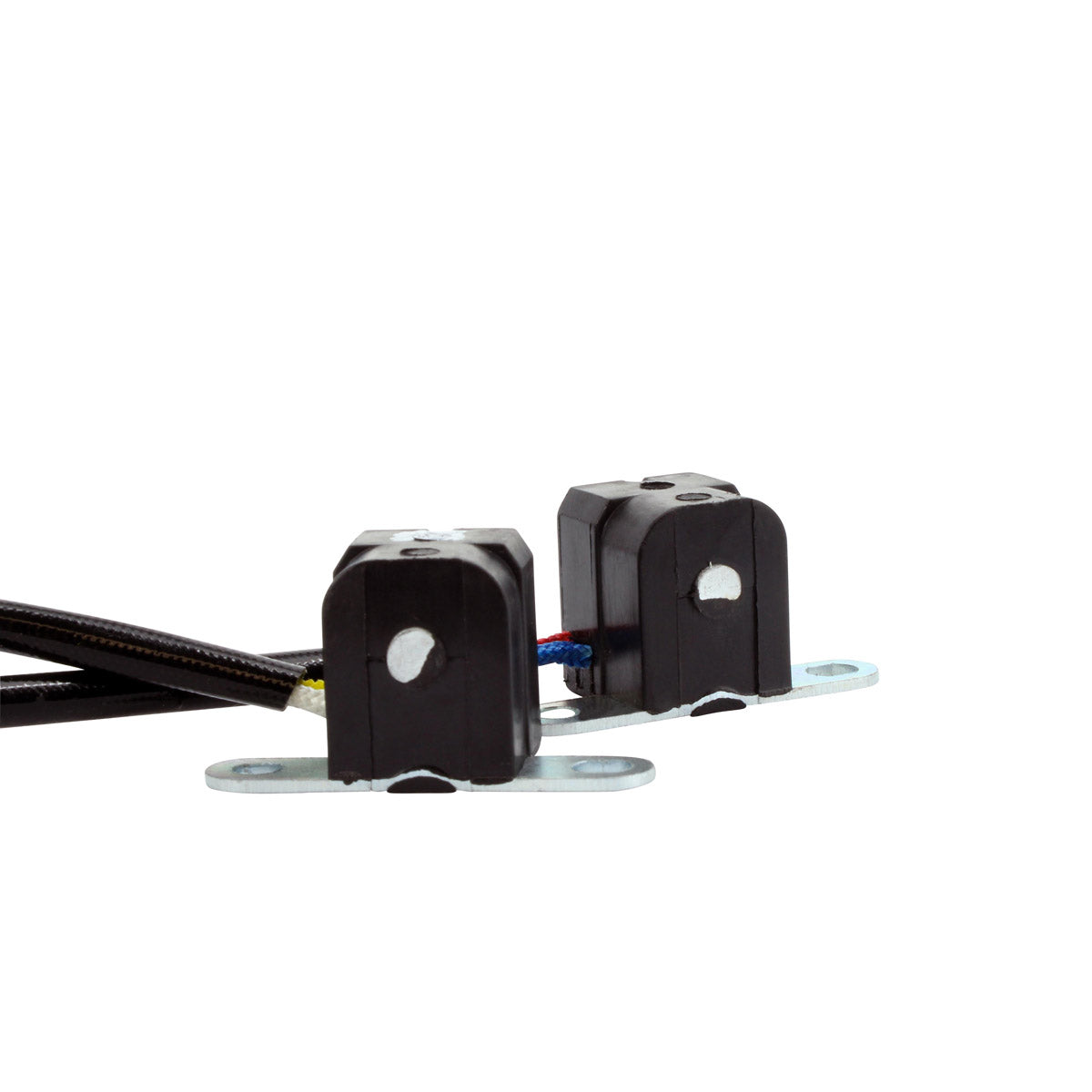

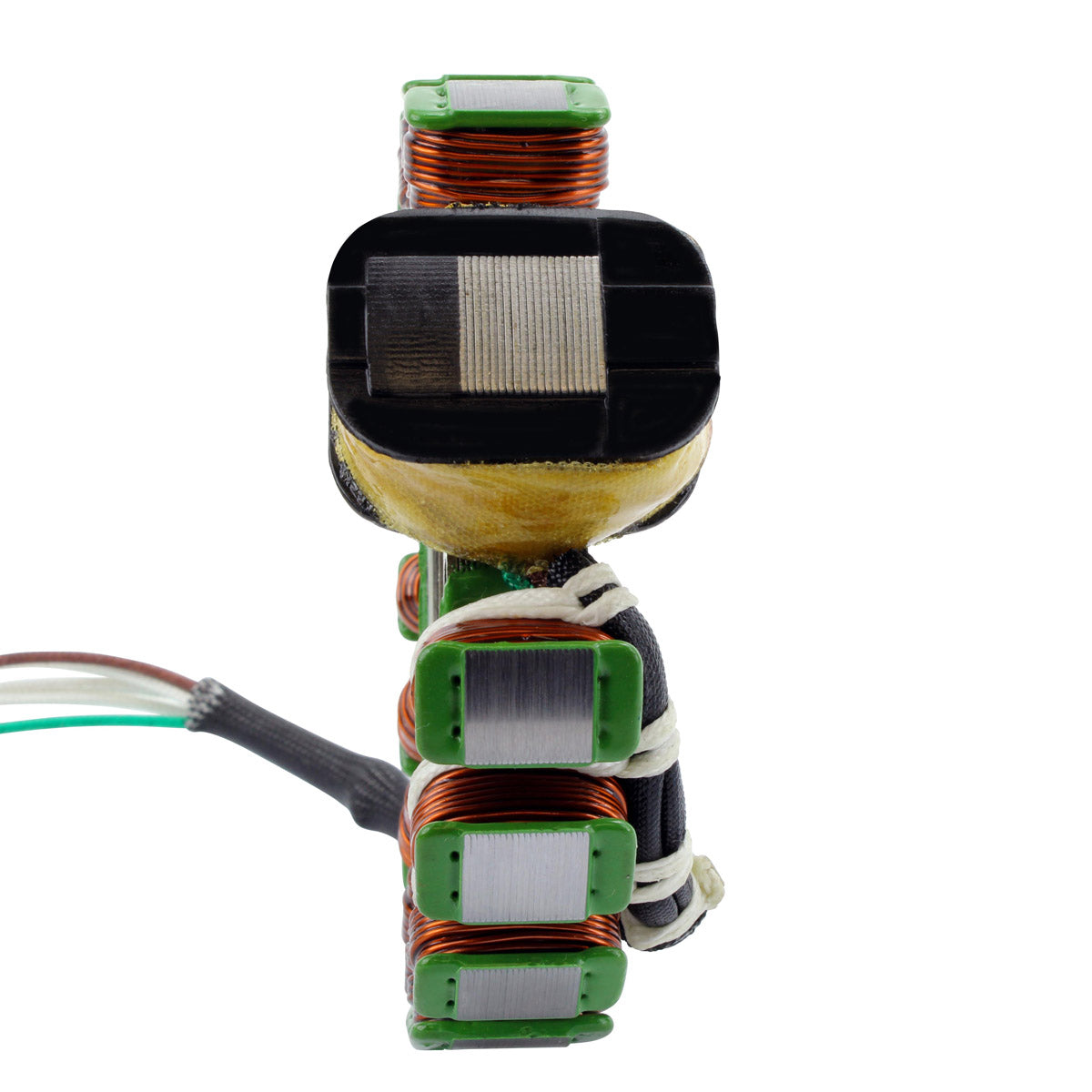

- Pick up pulsar coil included

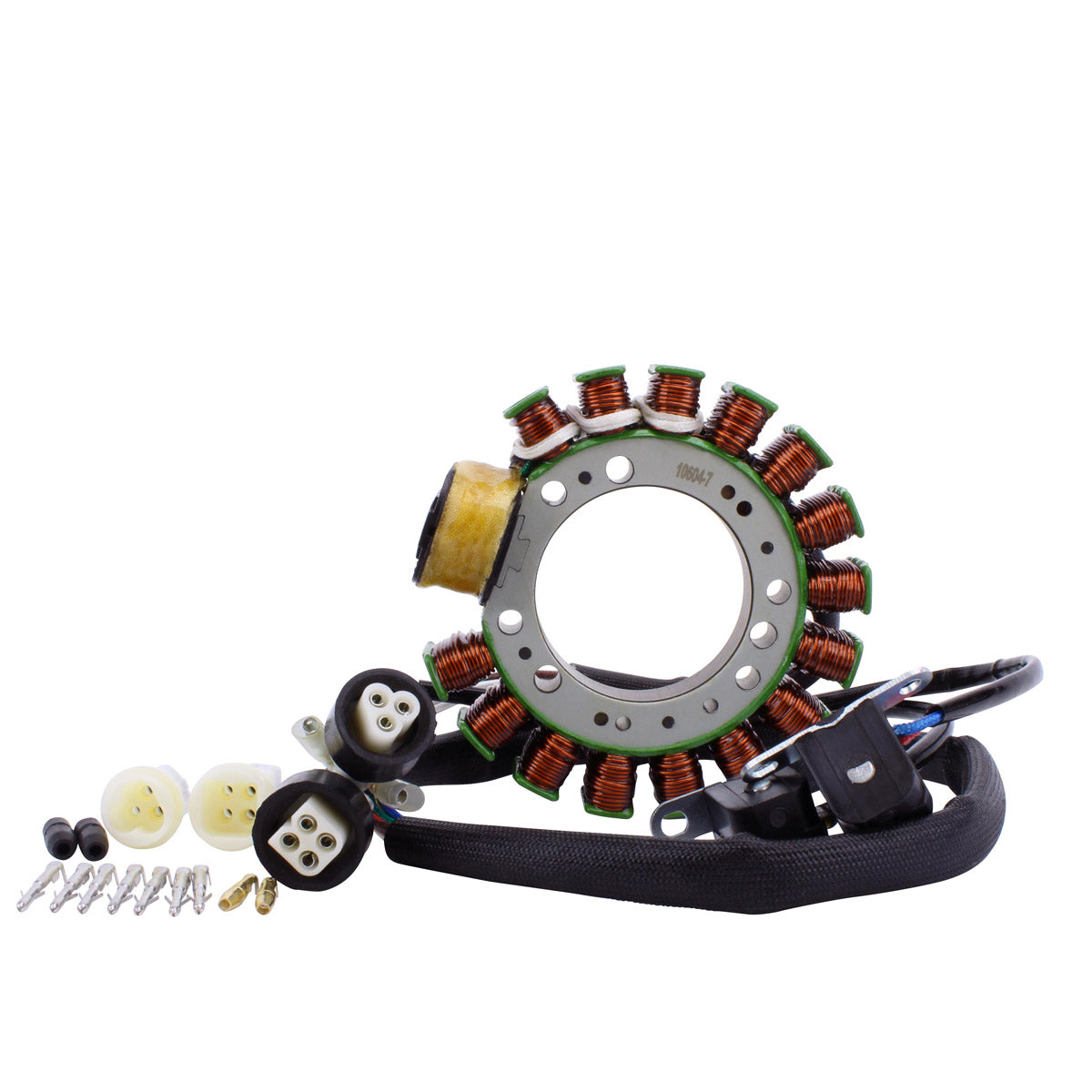

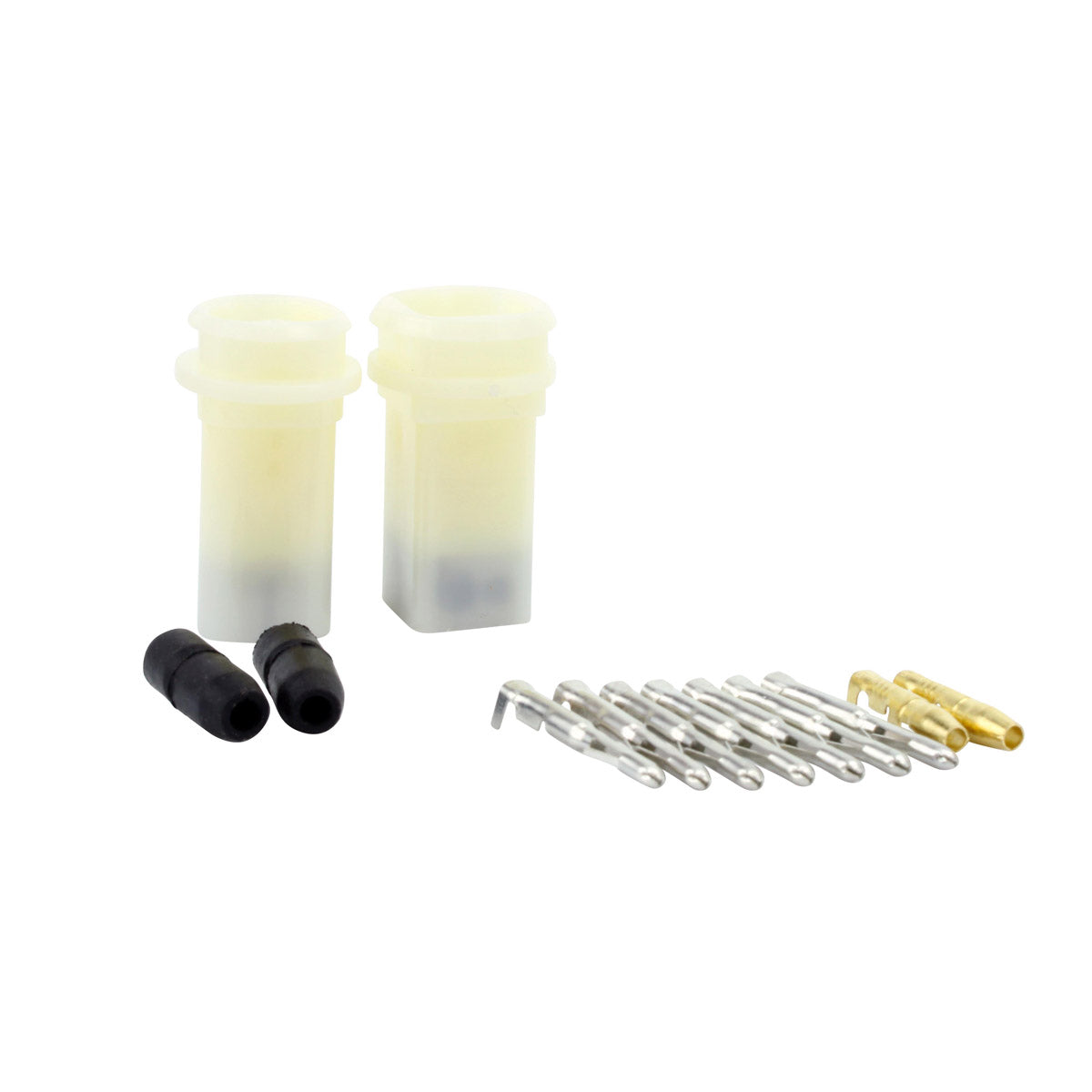

- Connector included

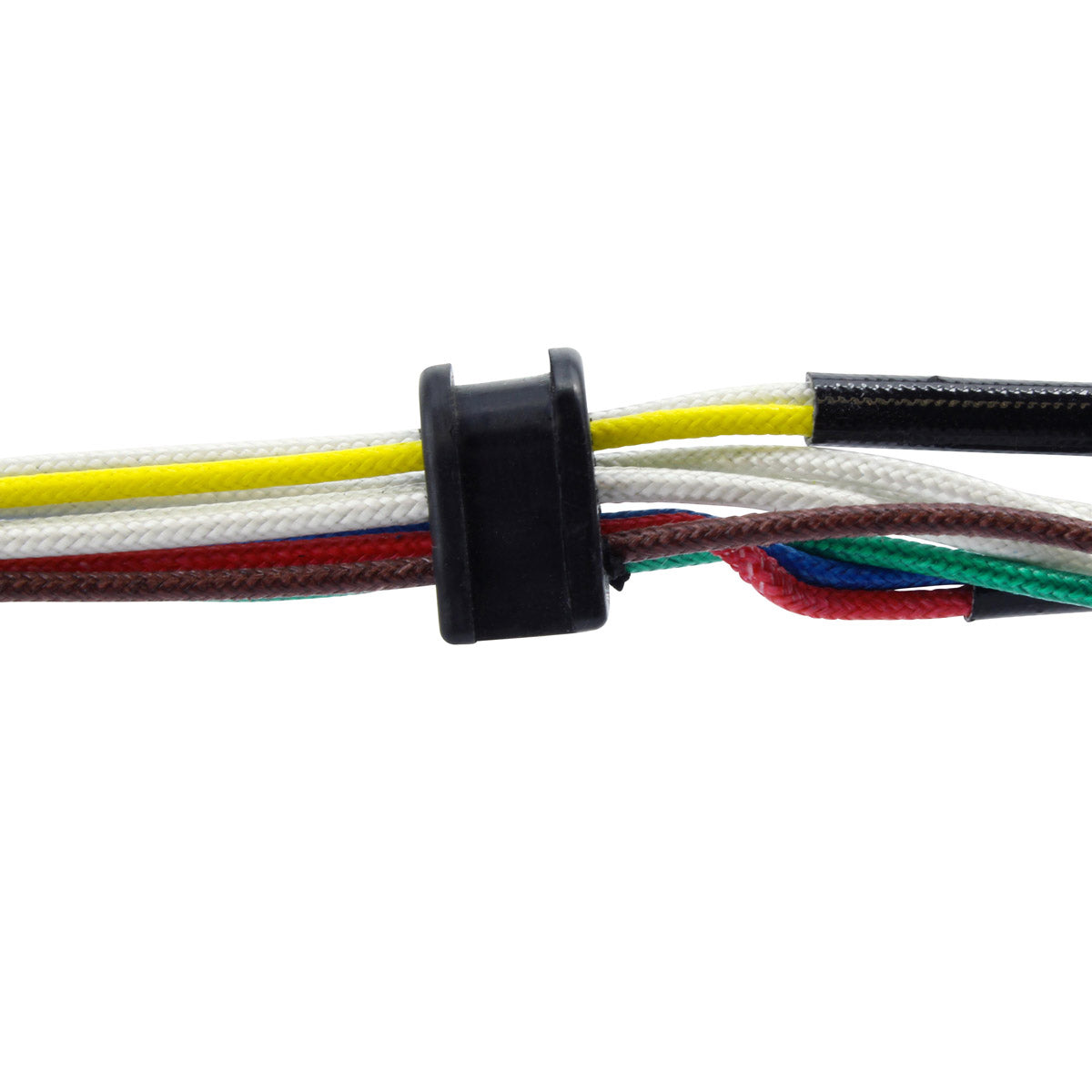

- Rubber grommet included
- All products shipped are tested

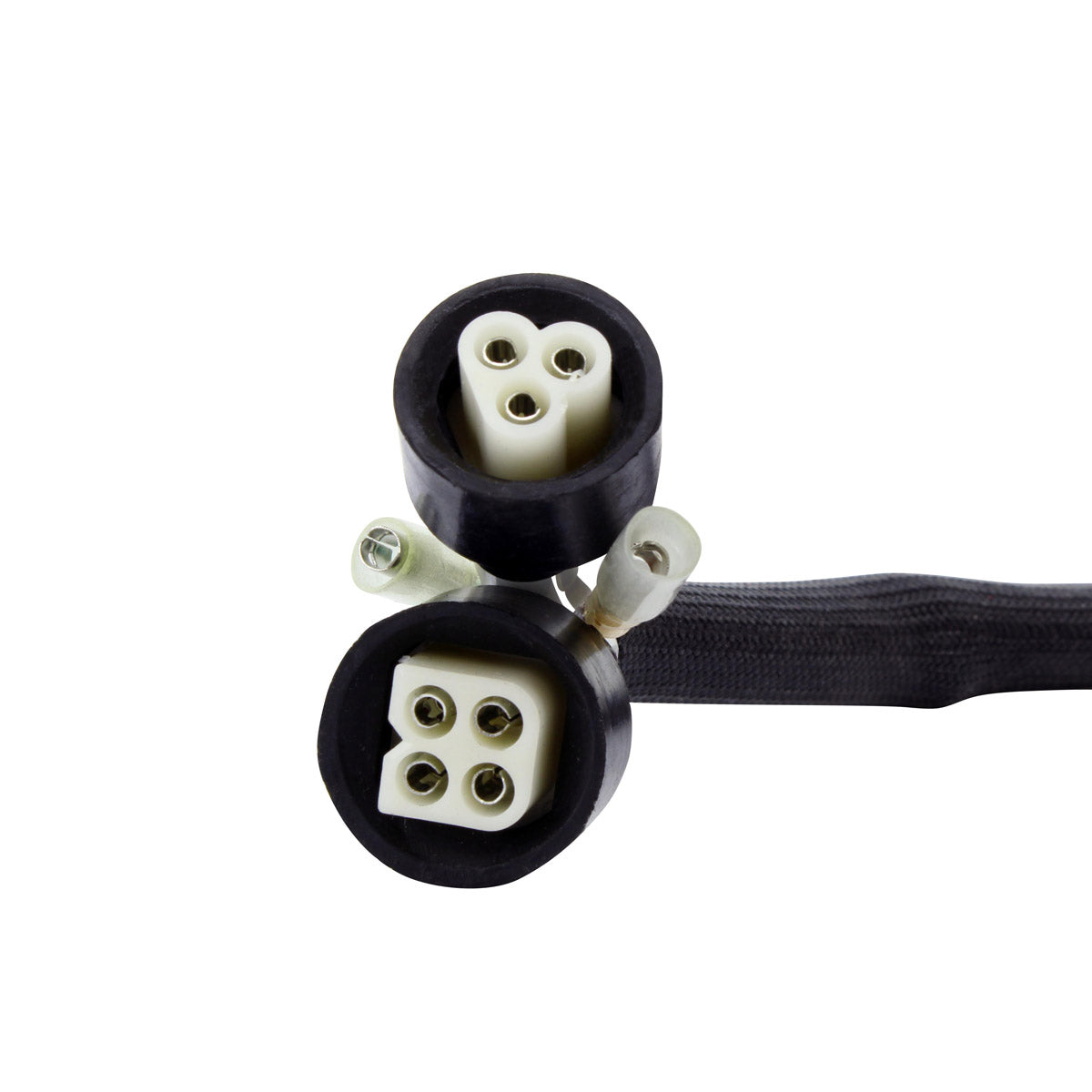

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
