Generator Stator for Polaris Scrambler 500 2x4 4x4 Sportsman 400 500 Ranger 500 2008-2014 | 3090061
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
- 2014 Polaris Sportsman 400 HO F/C Carb
- 2014 Polaris Ranger 400 Carb
- 2014 Polaris Hawkeye 400 HO
- 2013 Polaris Sportsman 500 Touring
- 2013 Polaris Sportsman 500 HO Forest
- 2013 Polaris Sportsman 500 HO
- 2013 Polaris Sportsman 400 HO F/C Carb
- 2013 Polaris Ranger 400 Carb
- 2013 Polaris Hawkeye 400 HO
- 2012 Polaris Sportsman 500 Touring
- 2012 Polaris Sportsman 500 HO Forest
- 2012 Polaris Sportsman 500 HO
- 2012 Polaris Sportsman 400 HO F/C Carb
- 2012 Polaris Ranger 400 Carb
- 2012 Polaris Hawkeye 400 HO
- 2011 Polaris Sportsman 500 Touring
- 2011 Polaris Sportsman 500 HO
- 2011 Polaris Sportsman 400 HO F/C Carb
- 2011 Polaris Ranger 400 Carb
- 2011 Polaris Hawkeye 400 HO
- 2010 Polaris Sportsman 500 Touring
- 2010 Polaris Sportsman 500 HO EFI
- 2010 Polaris Sportsman 400 HO F/C Carb
- 2010 Polaris Ranger 500 4x4
- 2009 Polaris Sportsman 400 HO F/C Carb
- 2009 Polaris Scrambler 500 4x4 Intl
- 2009 Polaris Scrambler 500 2x4 Intl
- 2009 Polaris Ranger 500 Carb
- 2008 Polaris Sportsman 400 HO F/C Carb
Interior diameter : 41 mm
Exterior diameter : 108 mm
Thickness : 18 mm
Length of wires stator to grommet : 145 mm
Length of wires grommet to plug : 950 mm
Length of pickup coil's wire to grommet : 95 mm
Other specifications :
Number of wires : 7
Number of plugs : 5
Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4 ohms +/-20%
Pickup : White to White/Red = 195 ohms +/-20%
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original. `
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010’’.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

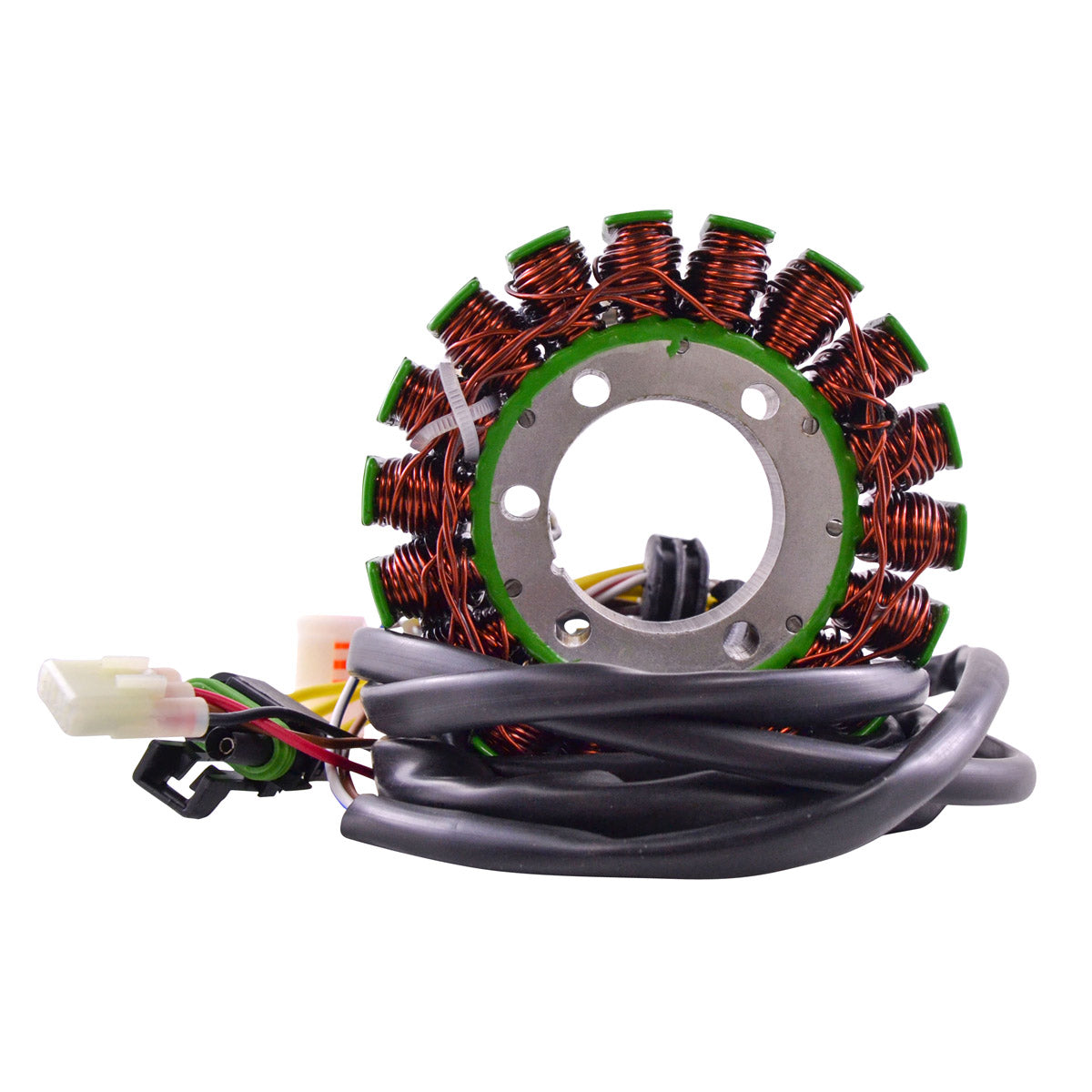

Brand new generator stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
