Generator Stator for Polaris Trail Blazer Trail Boss 330 cc 2010 2011 2012 2013

$USD 209.00
Availability: In stock
SKU
RM01402

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

3090278
Dimensions :
Interior diameter : 41mm
Exterior diameter : 103mm
Thickness : 13mm
Length of wires stator to grommet : 110mm
Length of wires grommet to plug : 800mm/1000mm
Length of pickup coil's wire to grommet : 155mm

Other specifications :
Number of wires : 10
Number of plugs : 7
Number of pins : 14

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4ohms +/-20%
Pickup : White to White/Red = 510ohms +/-20%

Before installing your new stator
  • Check the AC output of the stator.
  • Replace any burned or corroded connectors on stator and regulator/rectifier
  • Check and repair any melted wiring.
  • Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original. `
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010’’.

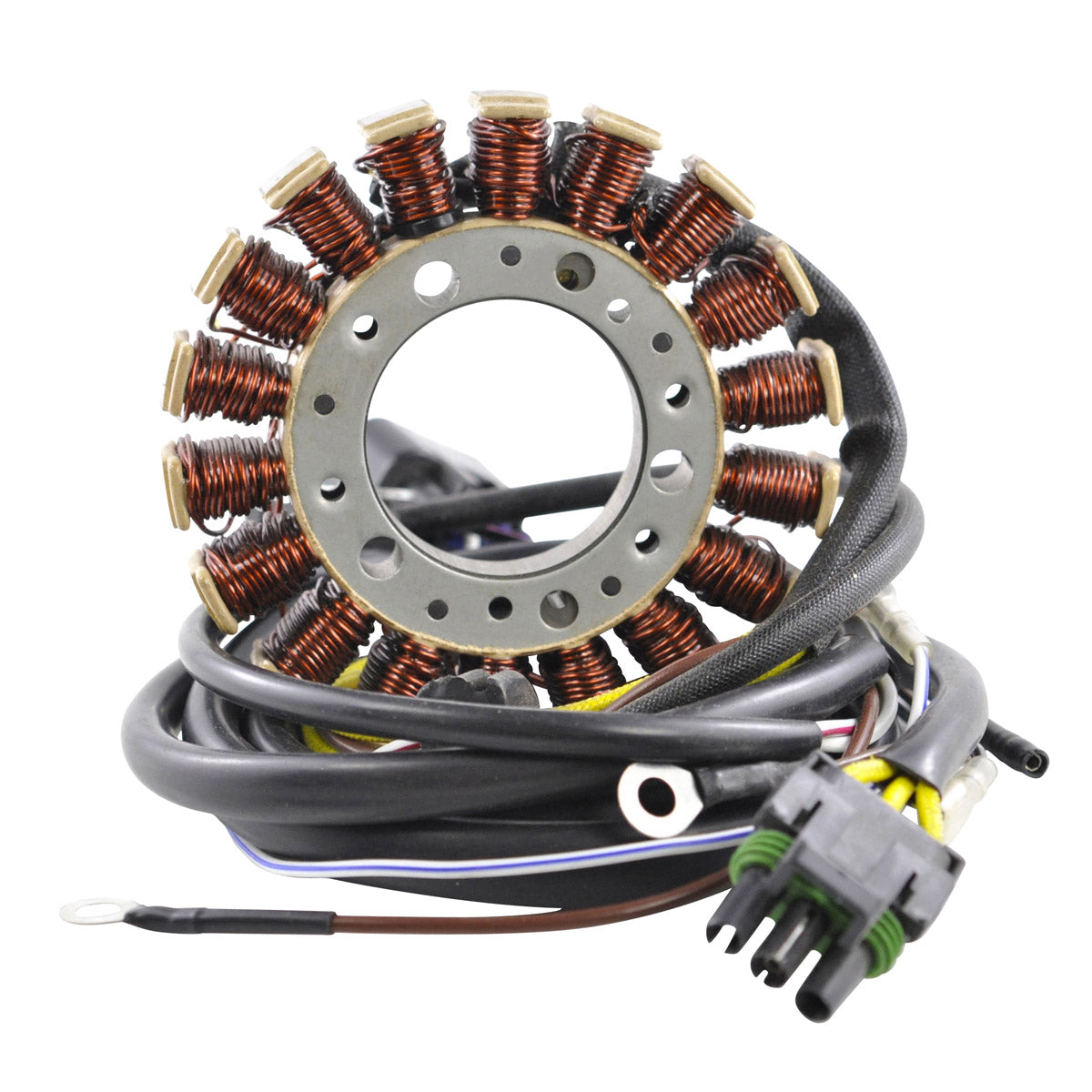

Brand new generator stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
