Voltage Regulator for John Deere Kohler Engine 8 to 25 HP / 15 AMP Magnum Command Pro Series KT17 KT19
RMSTATOR
SKU: RM30316
In Stock
RMSTATOR

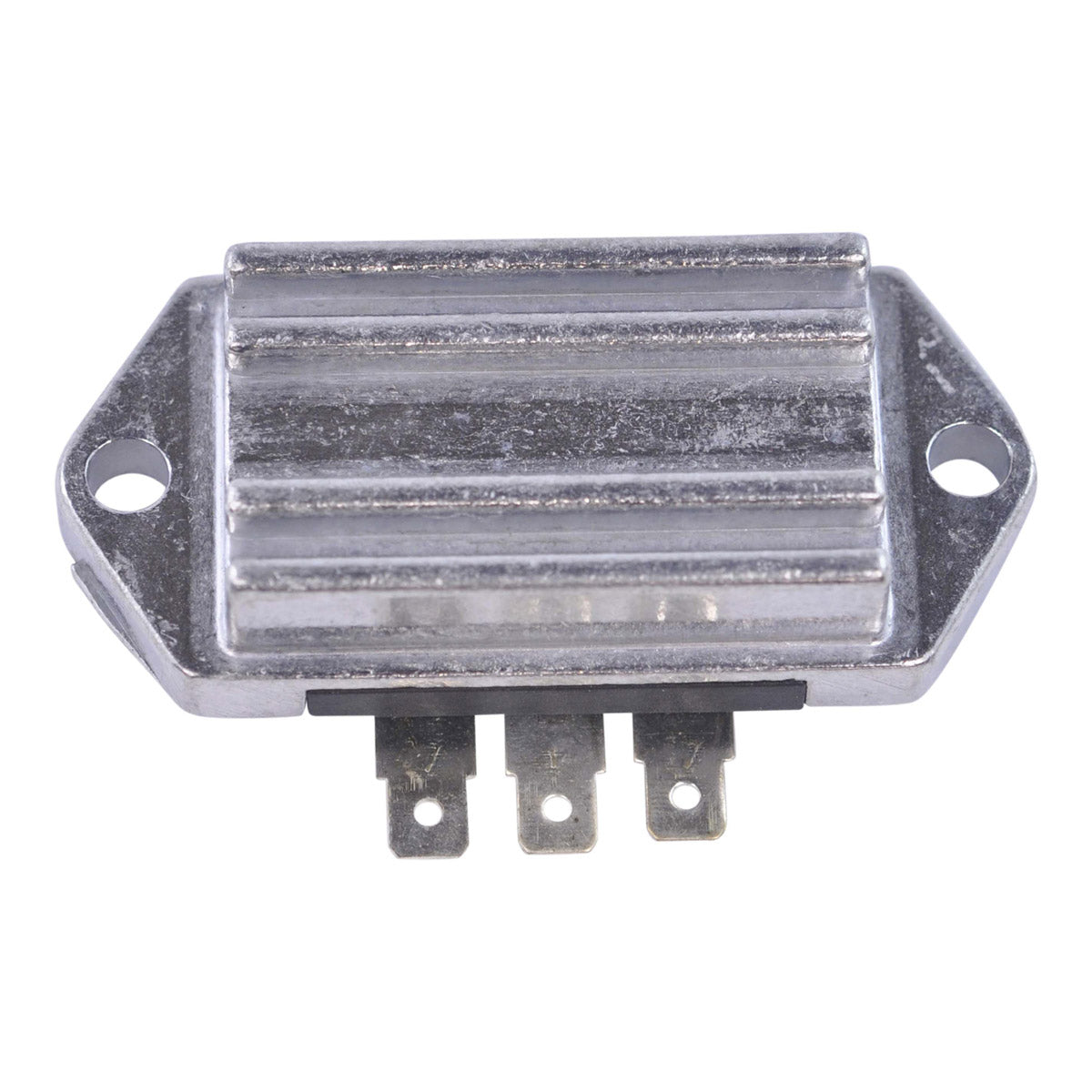

Voltage Regulator for John Deere Kohler Engine 8 to 25 HP / 15 AMP Magnum Command Pro Series KT17 KT19
Close
FITMENT WARNING::
Close
Close
Shop By Vehicle
Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
Read more
Voltage Regulator for John Deere Kohler Engine 8 to 25 HP / 15 AMP Magnum Command Pro Series KT17 KT19
Details
Details
Brand new aftermarket Voltage Regulator Rectifier
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- No assembly required
- Higher grade of electric components
- The quality exceeds the OEM equipment
- For 15 AMP permanent magnet (PM) charging systems
- All shipped products are tested
All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
Specifications
Specifications
Dimensions:
Width: 37 mm
Length: 80 mm
Height: 18 mm
Fixation holes center to center: 68 mm
Other specifications:
Number of plugs: 1
Number of terminals: 3 (AC / B+ / AC)
Voltage: 12 Volt, 14.4 Voltage set point
Amperage: 15 AMP
Width: 37 mm
Length: 80 mm
Height: 18 mm
Fixation holes center to center: 68 mm
Other specifications:
Number of plugs: 1
Number of terminals: 3 (AC / B+ / AC)
Voltage: 12 Volt, 14.4 Voltage set point
Amperage: 15 AMP
Interchange Part Nº
Interchange Part Nº
- 4140310-S
- 4140309
- 2540303-S
- AM102596
- 234279
- 4140306
- 4140308
- 4140309-S
- 2575503
- 4140301
- 4140304
- 4140305
- 2575503-S
Installation
Installation
Before installing your new voltage regulator rectifier:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
