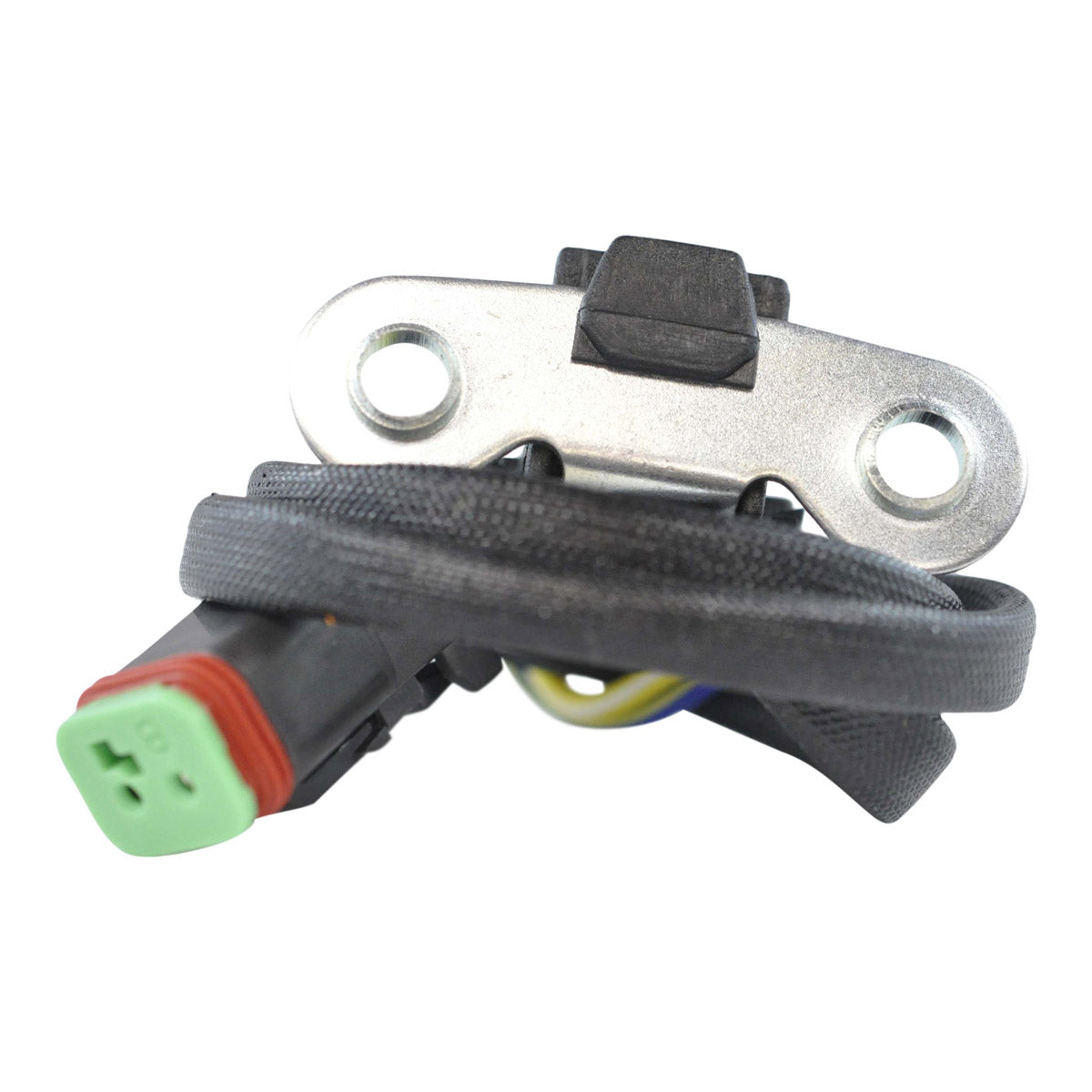

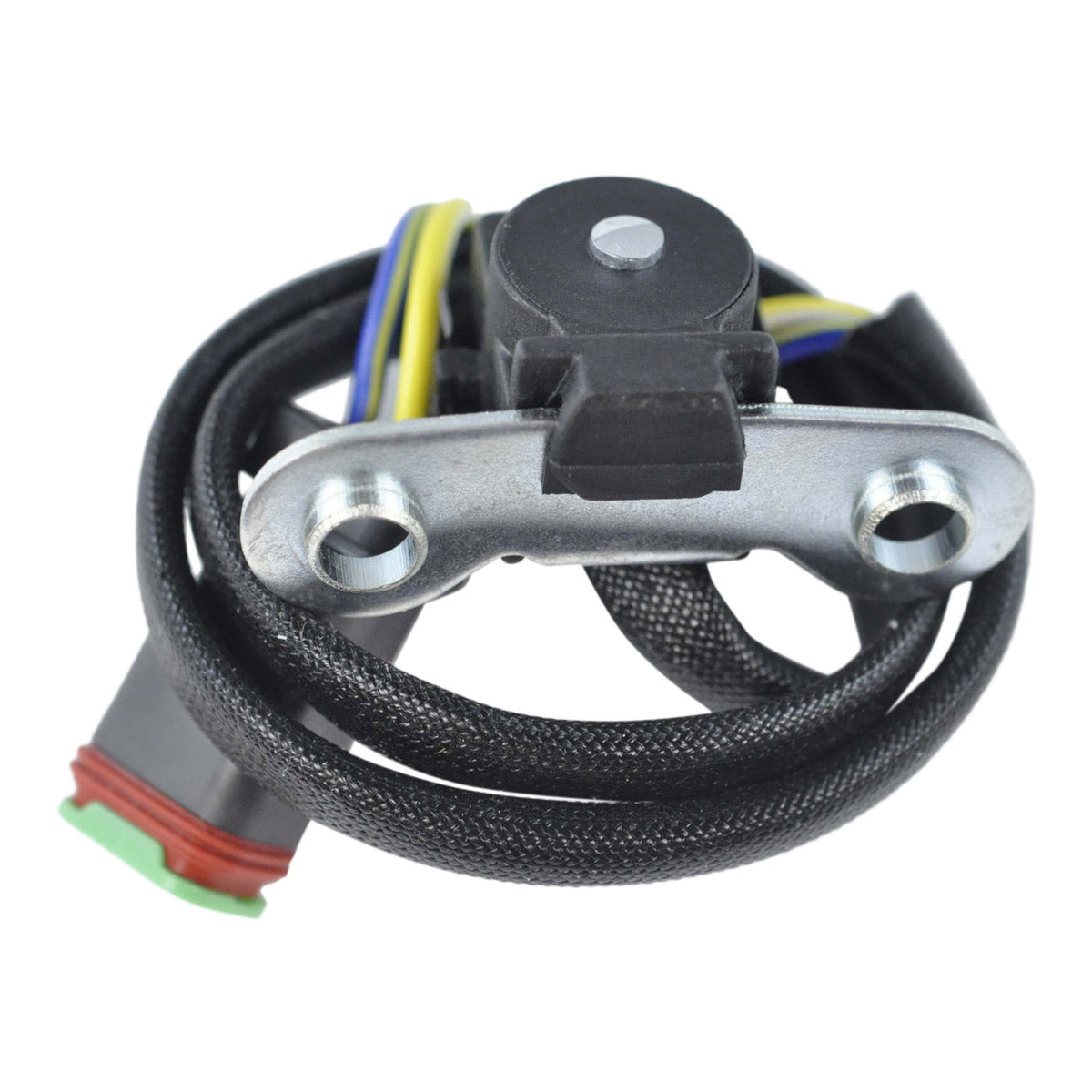

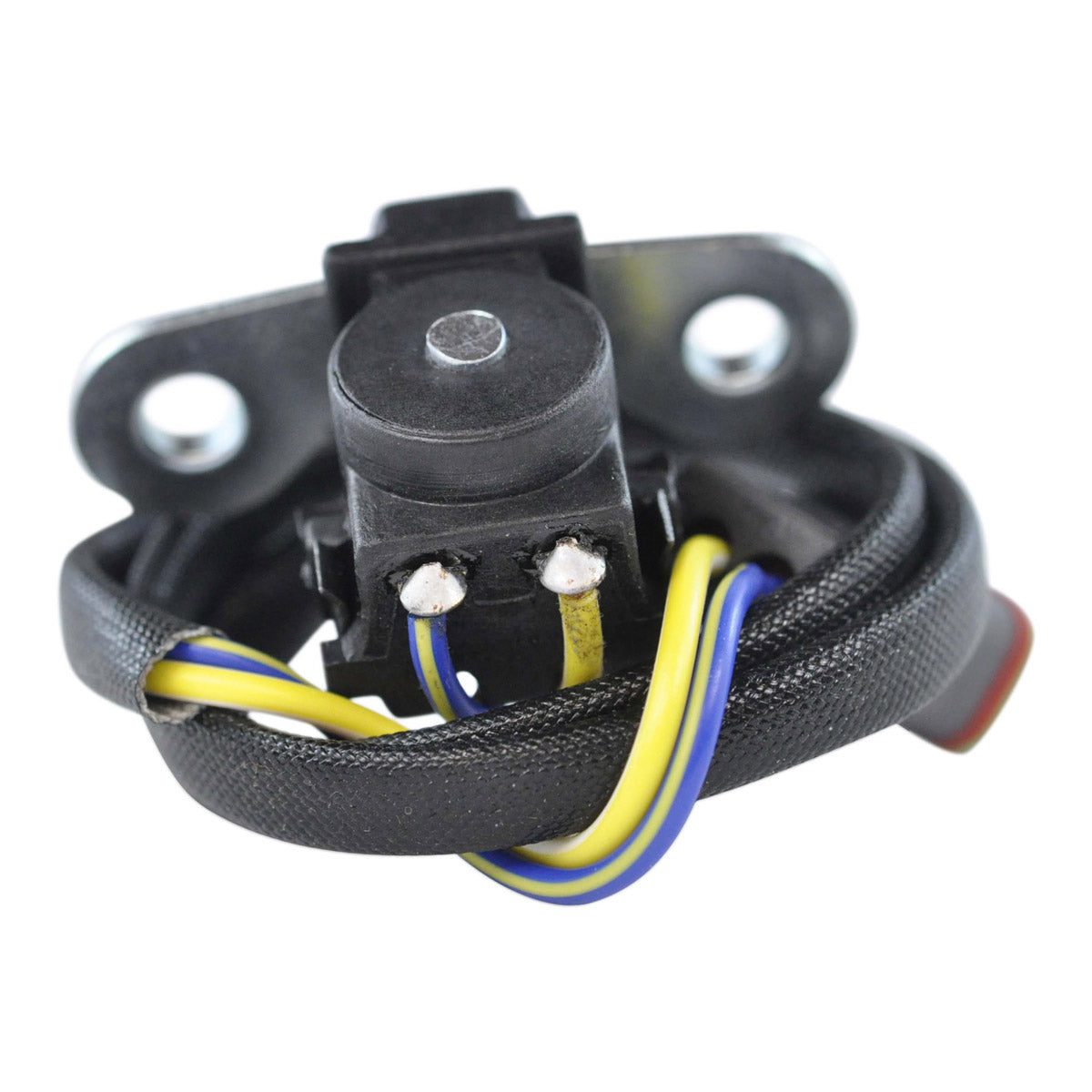

Stator Pickup Pulsar Coil for Ski-Doo / Lynx Formula GSX GTX Skandic Summit Xtrim 1999-2020 | OEM 420966835 410922925
RMSTATOR
SKU: RM00118
In Stock
RMSTATOR
Stator Pickup Pulsar Coil for Ski-Doo / Lynx Formula GSX GTX Skandic Summit Xtrim 1999-2020 | OEM 420966835 410922925
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
Stator Pickup Pulsar Coil for Ski-Doo / Lynx Formula GSX GTX Skandic Summit Xtrim 1999-2020 | OEM 420966835 410922925
Details
Details
Brand new pick up coil 250 ohms
- We offer a brand new pickup/pulser coil for you to repair your stator.
- Often unavailable from the OEM manufacturer
- All products shipped are tested
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications
Specifications
Dimensions:
Height: 28mm
Length: 24mm
Width: 19mm
Bracket center to center: 35mm
Wires length : 600mm
Other specifications:
Number of wires : 2
Number of pins: 2
Wire to wire resistance:
Blue to White = 250 ohms+/-20%
Height: 28mm
Length: 24mm
Width: 19mm
Bracket center to center: 35mm
Wires length : 600mm
Other specifications:
Number of wires : 2
Number of pins: 2
Wire to wire resistance:
Blue to White = 250 ohms+/-20%
Interchange Part Nº
Interchange Part Nº
- 410922932
- 410922955
- 420893060
- 420966838
- 410922963
- 410922969
- 410922951
- 420966835
- 410922925
- 420866370
Installation
Installation
Not following these instructions may result in damaging the part or other components on your vehicle.
- By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
- Insulate your solders with heat shrink.
- Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
- Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010ﾒﾒ.
- If no spark or erratic spark, switch the wires at the plug.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
