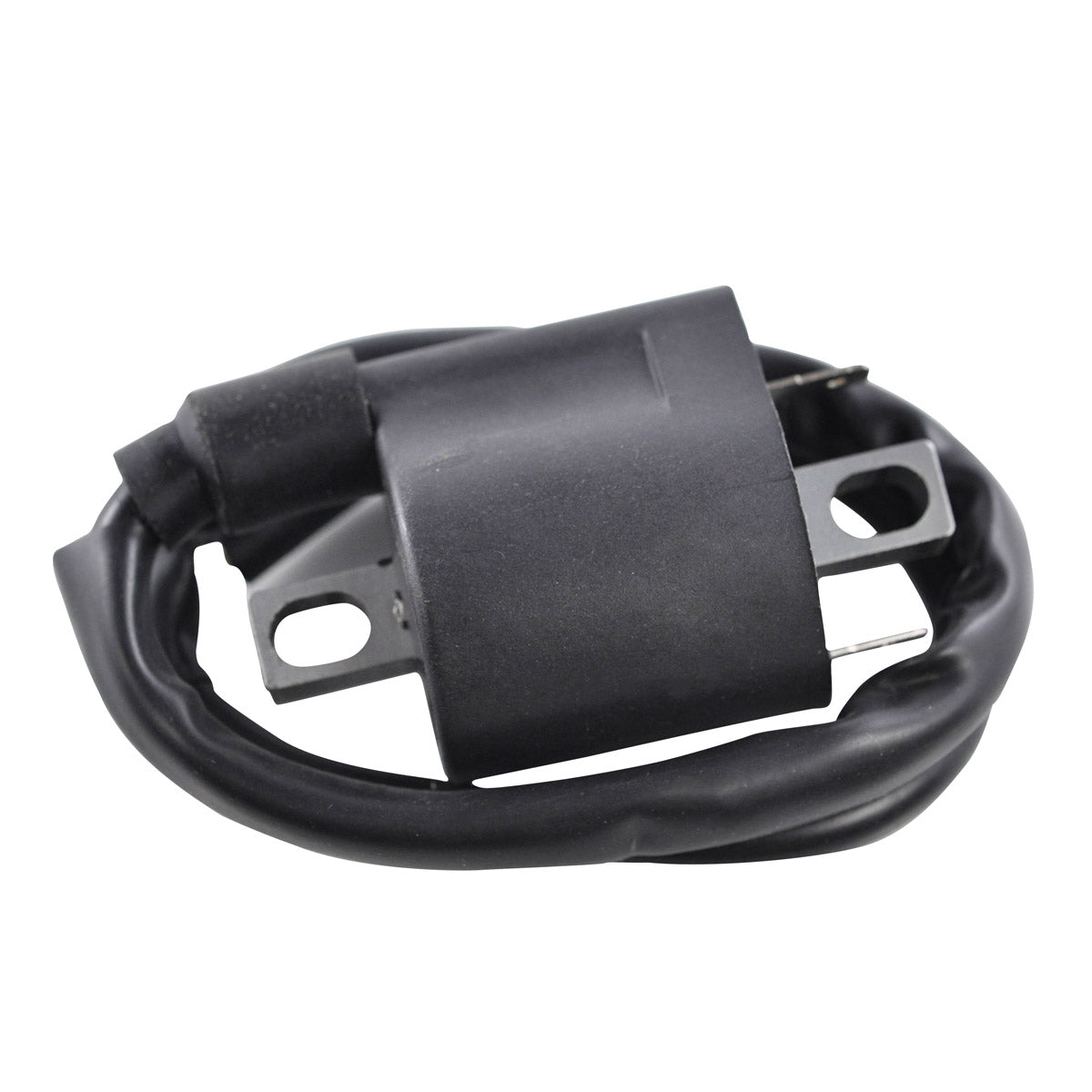

External Ignition Coil for Yamaha Raider 1900 | YXC / YXM 700 Viking | YFM 550 / 700 Grizzly 2006-2025 | 1D7-82310-00-00
RMSTATOR
SKU: RM06047
In Stock
RMSTATOR
External Ignition Coil for Yamaha Raider 1900 | YXC / YXM 700 Viking | YFM 550 / 700 Grizzly 2006-2025 | 1D7-82310-00-00
Close
Translation missing: en.sections.ymm.fitment_warning:
Close
Close
Shop By Vehicle
External Ignition Coil for Yamaha Raider 1900 | YXC / YXM 700 Viking | YFM 550 / 700 Grizzly 2006-2025 | 1D7-82310-00-00
Details
Details
Brand new aftermarket external ignition coil
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications
Specifications
Dimensions:
Width: 39 mm
Length: 45 mm
Height: 35 mm
Wires length: 400 mm
Fixation holes center to center: 56 mm
Primary resistance: 0.4 ohms
Secondary resistance: 9.8k ohms
Interchange Part Nº
Interchange Part Nº
- 1D7-82310-00-00
- 1D7-82310-01-00
- 5YU-82310-10-00
- 5YU-82310-13-00
- 1D7-82310-04-00
- 5YU-82310-11-00
- 1D7-82310-02-00
- 1D7-82310-03-00
- 5YU-82310-12-00
Installation
Installation
Remove spark plug cap(s) from your OEM external ignition coil. Screw cap(s) on the new external ignition coil.
Direct replacement to your original unit
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
