Voltage Regulator Rectifier for Honda CBR 900 954 RR / VTX 1800 2002-2008
Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
- 2008 Honda VTX 1800 T
- 2008 Honda VTX 1800 N
- 2008 Honda VTX 1800 F
- 2008 Honda VTX 1800 C
- 2007 Honda VTX 1800 T
- 2007 Honda VTX 1800 R Retro
- 2007 Honda VTX 1800 N
- 2007 Honda VTX 1800 F
- 2007 Honda VTX 1800 C
- 2006 Honda VTX 1800 S Spoke Wheel
- 2006 Honda VTX 1800 R Retro
- 2006 Honda VTX 1800 N
- 2006 Honda VTX 1800 F
- 2006 Honda VTX 1800 C
- 2005 Honda VTX 1800 S Spoke Wheel
- 2005 Honda VTX 1800 R Retro
- 2005 Honda VTX 1800 N
- 2005 Honda VTX 1800 F
- 2005 Honda VTX 1800 C
- 2004 Honda VTX 1800 S Spoke Wheel
- 2004 Honda VTX 1800 R Retro
- 2004 Honda VTX 1800 N
- 2004 Honda VTX 1800 C
- 2003 Honda VTX 1800 S Spoke Wheel
- 2003 Honda VTX 1800 R Retro
- 2003 Honda VTX 1800 C
- 2003 Honda CBR 954 RR
- 2002 Honda VTX 1800 S Spoke Wheel
- 2002 Honda VTX 1800 R Retro
- 2002 Honda VTX 1800 C
- 2002 Honda CBR 954 RR
31600-MCJ-750
Dimensions:
Width: 103 mm
Length: 80 mm
Height: 33 mm
Fixation holes center to center: 70 mm
Other specifications:
Number of plugs: 2
Number of pins: 8
Number of wires: 8
Minimum Charging Voltage: 14.5V +- 0.5V
Maximum Charging Current: 50A500W
Open Circuit Voltage: 15V
Operation Temperature: -20⁰ to 85⁰
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

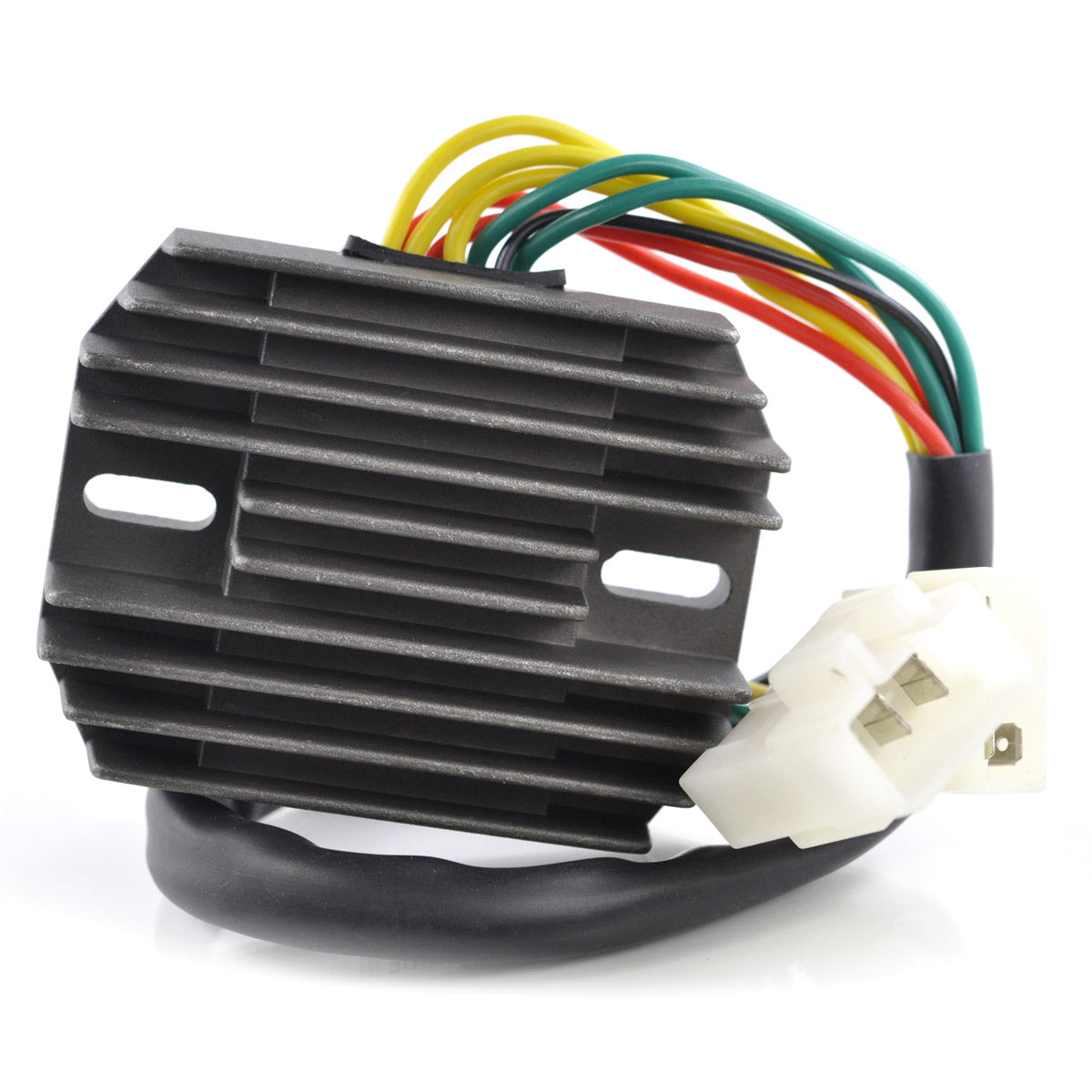

Brand new 3 phase voltage regulator rectifier
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- Improved heat sink and charging capabilities
- Higher grade of electric components.
- The Quality exceeds the OEM equipment
- All products shipped are tested
Please Note: There are two possible regulators for the Honda VTX 1800
We have incorporated the last generation rectifier module and voltage control circuitry and our highly efficient heat sink.
Our regulator rectifier offers superior performance than your stock unit because; output voltage is stable at all engine RPMs, advanced internal power circuit and heat generation is kept to a minimum which dramatically improves reliability.
*All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.
