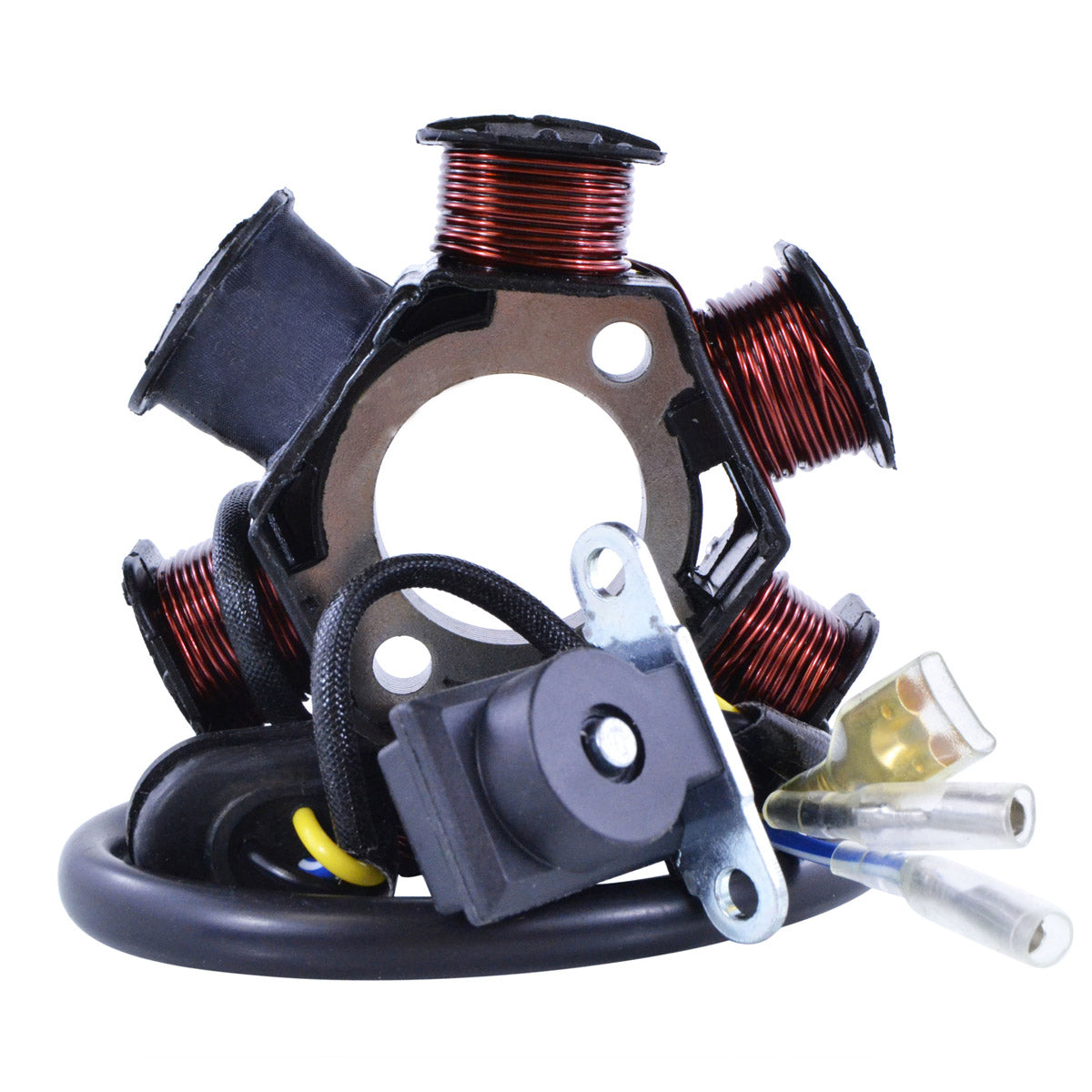

Lighting Stator for Honda XR 80 / 100 R | CRF 80 / 100 F 1992-2013 | OEM Repl.# 31120-GN1-691 / 31120-KN4-751

Lighting Stator for Honda XR 80 / 100 R | CRF 80 / 100 F 1992-2013 | OEM Repl.# 31120-GN1-691 / 31120-KN4-751

Name: Lighting Stator for Honda XR 80 / 100 R | CRF 80 / 100 F 1992-2013 | OEM Repl.# 31120-GN1-691 / 31120-KN4-751
Brand: RMSTATOR
SKU: RMS010-103824
Price: 136.89 USD
Availability: InStock

RMSTATOR

SKU: RMS010-103824

In Stock

RMSTATOR

Lighting Stator for Honda XR 80 / 100 R | CRF 80 / 100 F 1992-2013 | OEM Repl.# 31120-GN1-691 / 31120-KN4-751

$136.89

This product fits your

Close

FITMENT WARNING:

This product does not fit your

Close

This product is ride specific

Close

Shop By Vehicle

Please Note: The OEM stator did not include a lighting coil because no lights come on the bike. If you would like to add a headlight and/or taillight, our stator includes a 100Watt lighting coil between the Yellow wire and ground. The Black wire from the regulator needs to be grounded to the frame, and the Yellow wire is connected to the Yellow wire from the stator and also to your lights (the other side of your lights are grounded to the frame to complete the circuit). A new regulator must be used to support the lighting.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY!

Brand new aftermarket stator

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included
Rubber grommet included
All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications

Dimensions :
Interior diameter : 30 mm
Exterior diameter : 85 mm
Thickness : 32 mm
Length of wires stator to grommet : 185 mm
Length of wires grommet to terminals : 355 mm
Length of pickup coil's wire to grommet : 78 mm

Other specifications :
Number of wires : 3
Number of pins : 3

Wire to wire resistance :
Alternator : Yellow to Ground = 0.4 ohms +-20%
Pickup : Blue/Yellow to Ground = 120 ohms +-20%
Source : Black/Red to Ground = 500 ohms +-20%

Interchange Part Nº

31120-GN1-691
31120-KN4-751

Installation

Before installing your new stator

Check the AC output of the stator
Replace any burned or corroded connectors on stator and regulator rectifier
Check and repair any melted wiring
Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
