Voltage Regulator Rectifier for Honda SXS 1000 R / X / X-4 Talon 2019-2023 | OEM Repl.# 31600-HL6-A01
RMSTATOR
SKU: RMS020-107177
In Stock
RMSTATOR
Voltage Regulator Rectifier for Honda SXS 1000 R / X / X-4 Talon 2019-2023 | OEM Repl.# 31600-HL6-A01
Close
Translation missing: en.sections.ymm.fitment_warning:
Close
Close
Shop By Vehicle
Battery condition is important. No regulator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
Voltage Regulator Rectifier for Honda SXS 1000 R / X / X-4 Talon 2019-2023 | OEM Repl.# 31600-HL6-A01
Details
Details

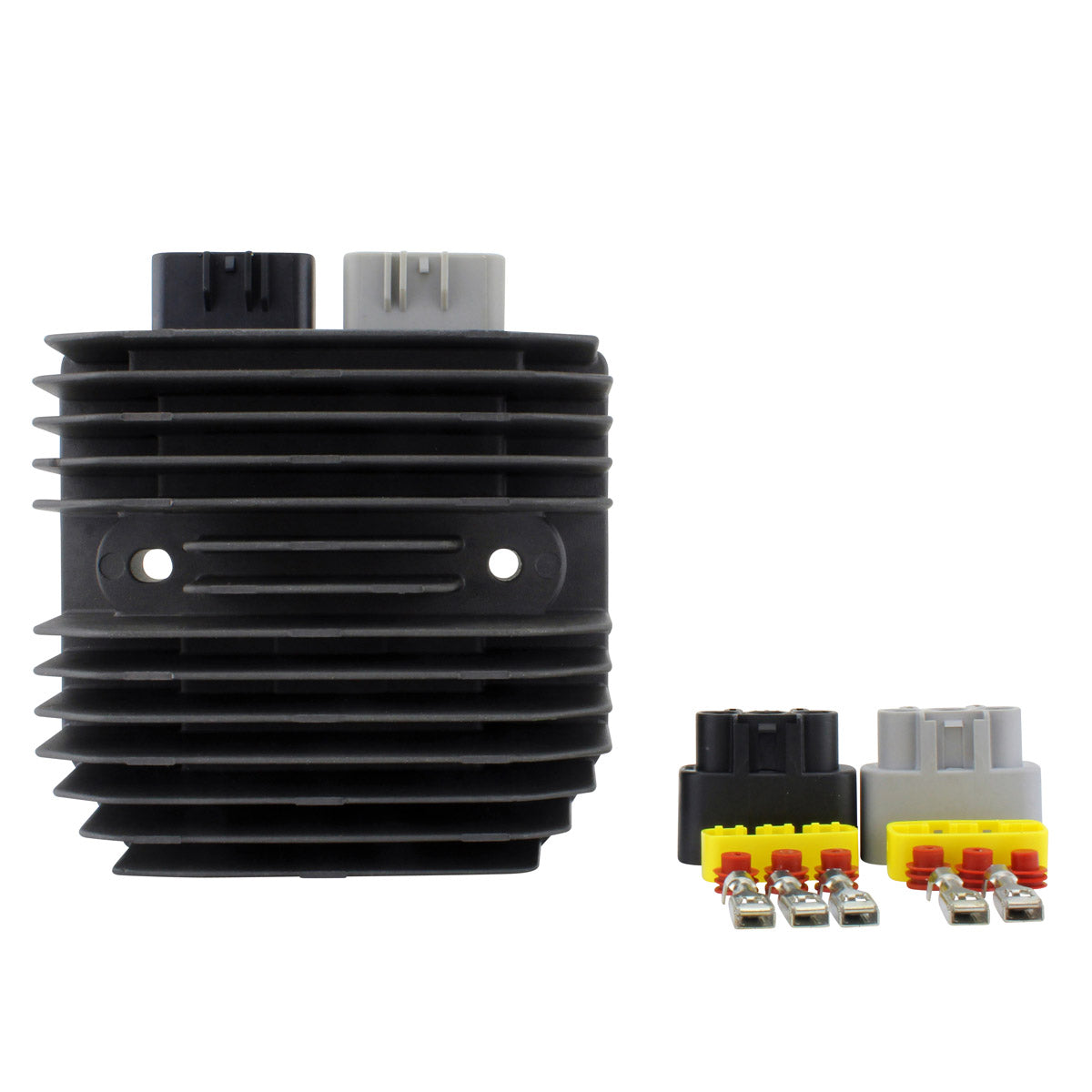

Brand new aftermarket Voltage Regulator Rectifier
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- No assembly required
- Higher grade of electric components
- The quality exceeds the OEM equipment
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and are a major cause of repetitive electrical issues.
All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
Specifications
Specifications
Dimensions:
Width: 129 mm
Length: 120 mm
Height: 45 mm
Distance between fixation holes center to center: 81 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C
Interchange Part Nº
Interchange Part Nº
- 31600-HL6-A01
Installation
Installation
Before installing your new Voltage Regulator Rectifier:
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
Vehicle Fitments
Vehicle Fitments
Vehicle Fitments
2023 Honda SXS 1000 R Talon
2023 Honda SXS 1000 X Talon
2023 Honda SXS 1000 X-4 Talon
2022 Honda SXS 1000 R Talon
2022 Honda SXS 1000 X Talon
2022 Honda SXS 1000 X-4 Talon
2021 Honda SXS 1000 R Talon
2021 Honda SXS 1000 X Talon
2021 Honda SXS 1000 X-4 Talon
2020 Honda SXS 1000 R Talon
2020 Honda SXS 1000 X Talon
2020 Honda SXS 1000 X-4 Talon
2019 Honda SXS 1000 R Talon
2019 Honda SXS 1000 X Talon
