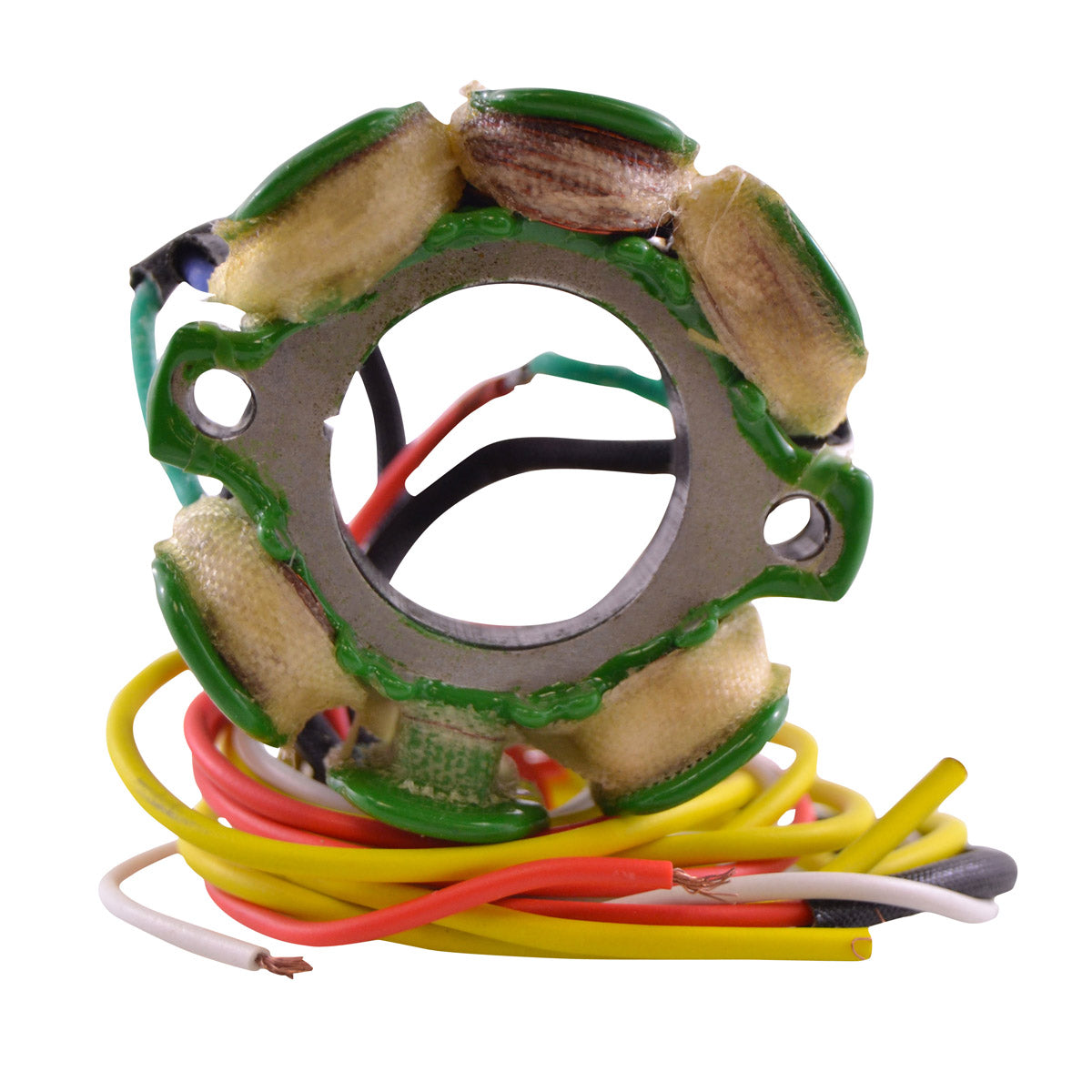

Stator for Suzuki RM 125 | RM 250 1996-2006 | # 32101-37E40 32101-36E00 32101-37E00 32101-37E10 32101-37E20 32101-37E30
RMSTATOR
SKU: RM01293
In Stock
RMSTATOR
Stator for Suzuki RM 125 | RM 250 1996-2006 | # 32101-37E40 32101-36E00 32101-37E00 32101-37E10 32101-37E20 32101-37E30
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
Read more
Stator for Suzuki RM 125 | RM 250 1996-2006 | # 32101-37E40 32101-36E00 32101-37E00 32101-37E10 32101-37E20 32101-37E30
Details
Details
Brand new aftermarket stator
- You must re-install your original connector and grommet (see picture).
- Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install.
- Higher grade of electric components.
- Highest grade copper windings, resistant to 200 degrees Celsius.
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications
Specifications
Dimensions:
Interior diameter: 28mm
Exterior diameter: 57mm
Thickness: 15mm
Length of wires stator to terminals: 600mm
Other specifications:
Number of wires: 4
Number of plugs: 0
Number of terminals: 4
Wire to wire resistance:
Source 1 : Red to White = 28 ohms +/-20%
Source 2 : Yellow to Yellow = 0.4 ohms +/- 20%
Interior diameter: 28mm
Exterior diameter: 57mm
Thickness: 15mm
Length of wires stator to terminals: 600mm
Other specifications:
Number of wires: 4
Number of plugs: 0
Number of terminals: 4
Wire to wire resistance:
Source 1 : Red to White = 28 ohms +/-20%
Source 2 : Yellow to Yellow = 0.4 ohms +/- 20%
Interchange Part Nº
Interchange Part Nº
- 32101-37E00
- 32101-37E30
- 32101-37E40
- 32101-37E10
- 32101-36F00
- 32101-36E00
- 32101-37F00
- 32101-37E20
Installation
Installation
Before installing your new stator
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
When bolting stator in, always use locking compound.
Follow these instructions
- Solder RED wire from RM01293 stator to original BLACK/RED
- Solder White wire From RM01293 stator to original WHITE/RED
- The two yellow wires for the RM01293 stator are provided for late model RM's that require a power valve supply. If your bike does not have these two wires you have two options :
A. Simply cut the wires and insulate them so they cannot short out
B. Use it for a low wattage light. To do this you must route the two yellow wires through the stator harness
Note: When bolting stator in always use locking compound
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
