100W Stator for KTM 125 SXS 1999-2003 | 200 EXC / 300 MXC 2000-2004 | Jackpinner 200 1997 | 125 1998 1999 | 50339004200

RMSTATOR
SKU: RMS010-107700
Low Stock
RMSTATOR

100W Stator for KTM 125 SXS 1999-2003 | 200 EXC / 300 MXC 2000-2004 | Jackpinner 200 1997 | 125 1998 1999 | 50339004200

$119.89
This product fits your
Close
FITMENT WARNING:
This product does not fit your
Close
This product is ride specific
Close
Shop By Vehicle

Please note: There are multiple different stators used on the across KTM motorcycle models.

This part will ONLY replace the OEM 50339004200.

If your machine uses the OEM 54839104000 please see RM01374.

If your machine uses the OEM 54839204000 please see RMS010-108513 .

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Read more
100W Stator for KTM 125 EXC SX | 200 EXC MXC | 250 EXC MXC | 300 SX EXE | 380 SX EXC-F 1997-2005 | # 50339004200
100W Stator for KTM 125 SXS 1999-2003 | 200 EXC / 300 MXC 2000-2004 | Jackpinner 200 1997 | 125 1998 1999 | 50339004200
$119.89

Details

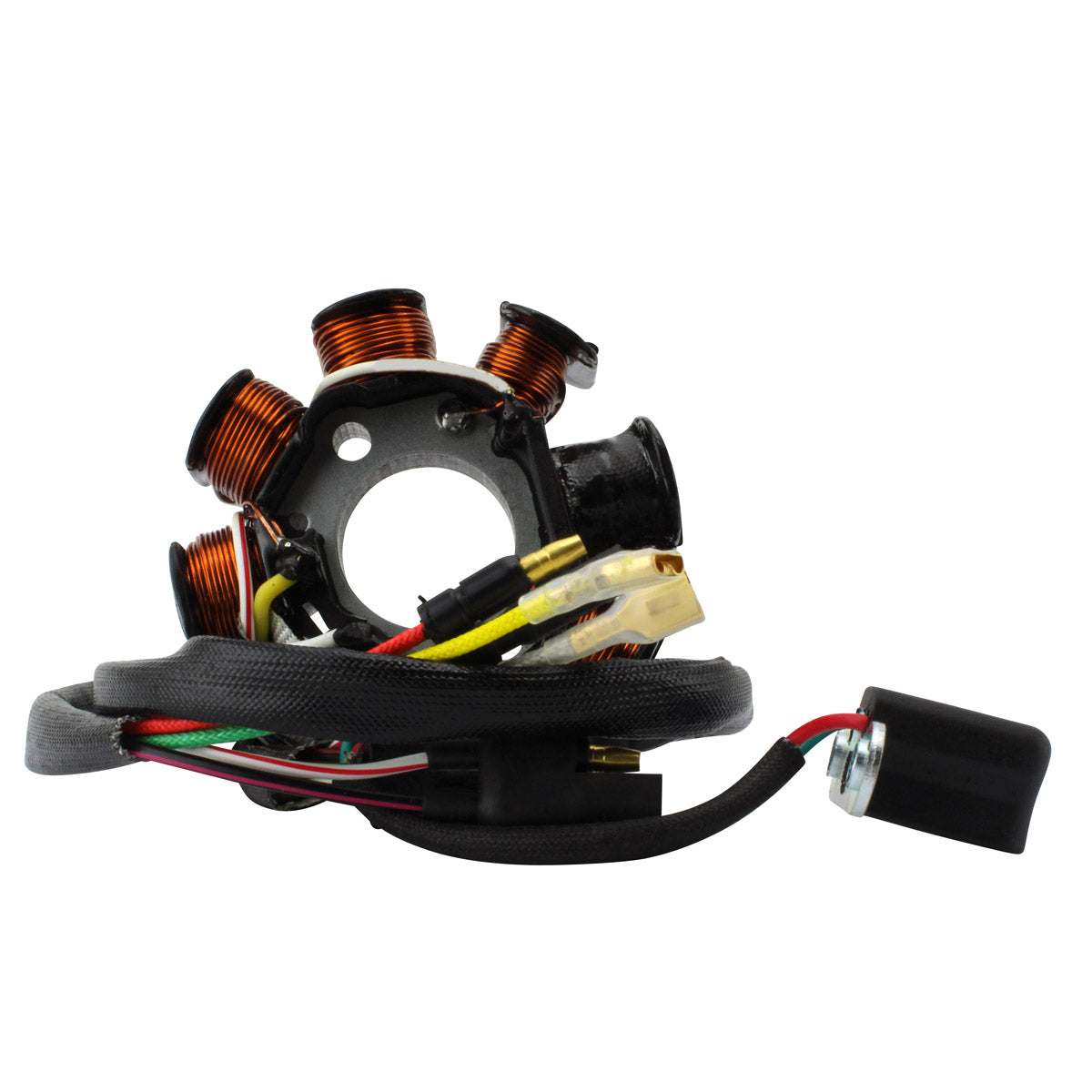

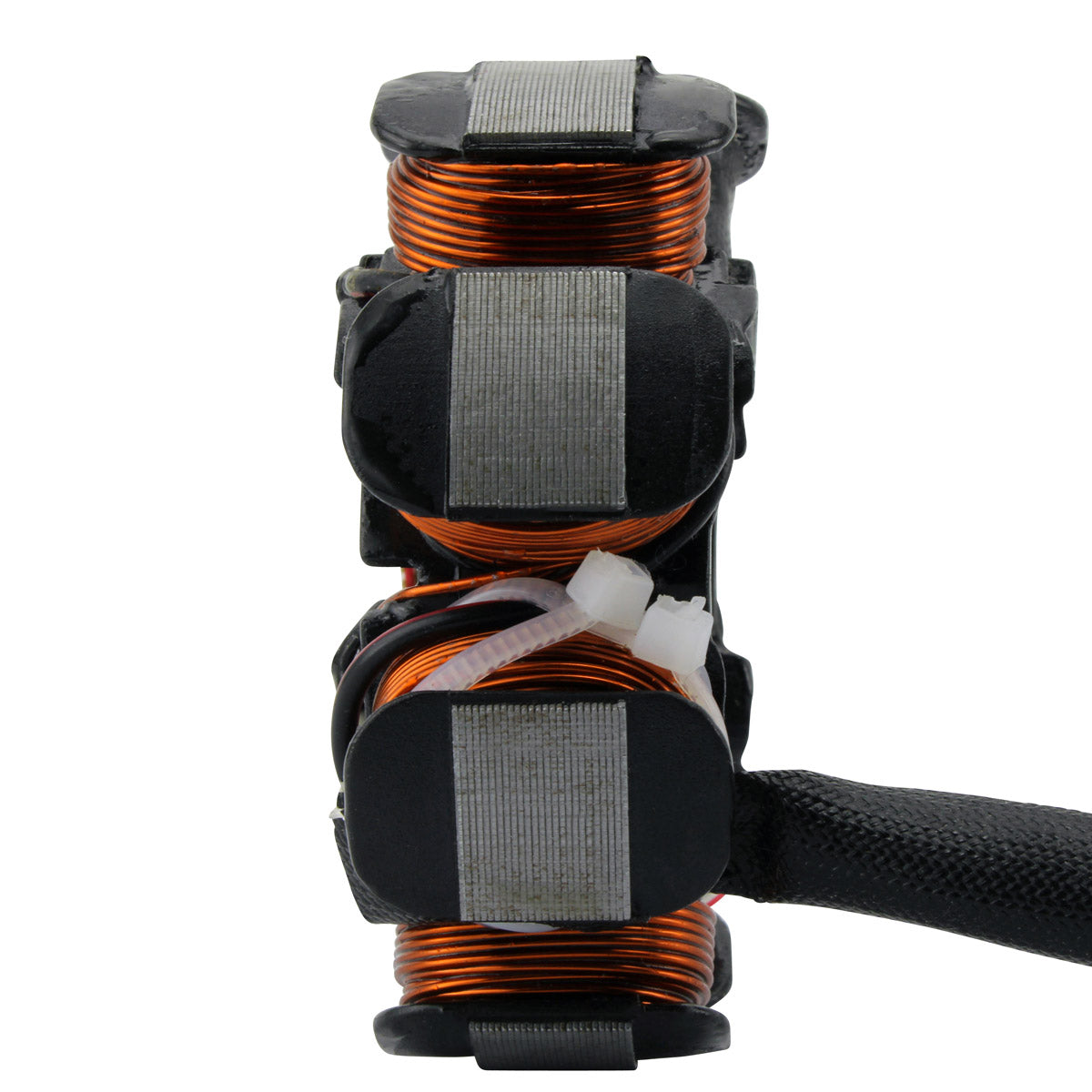

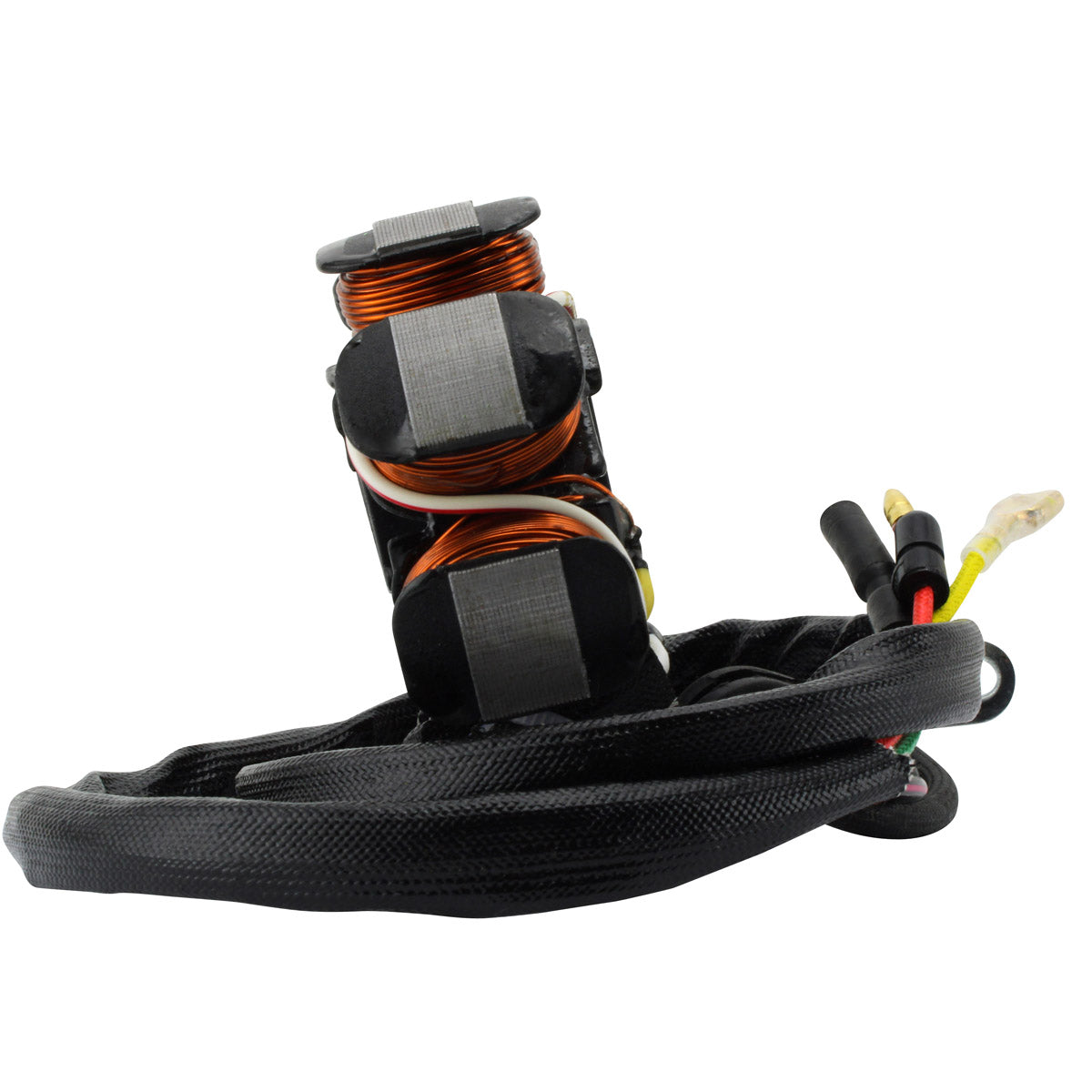

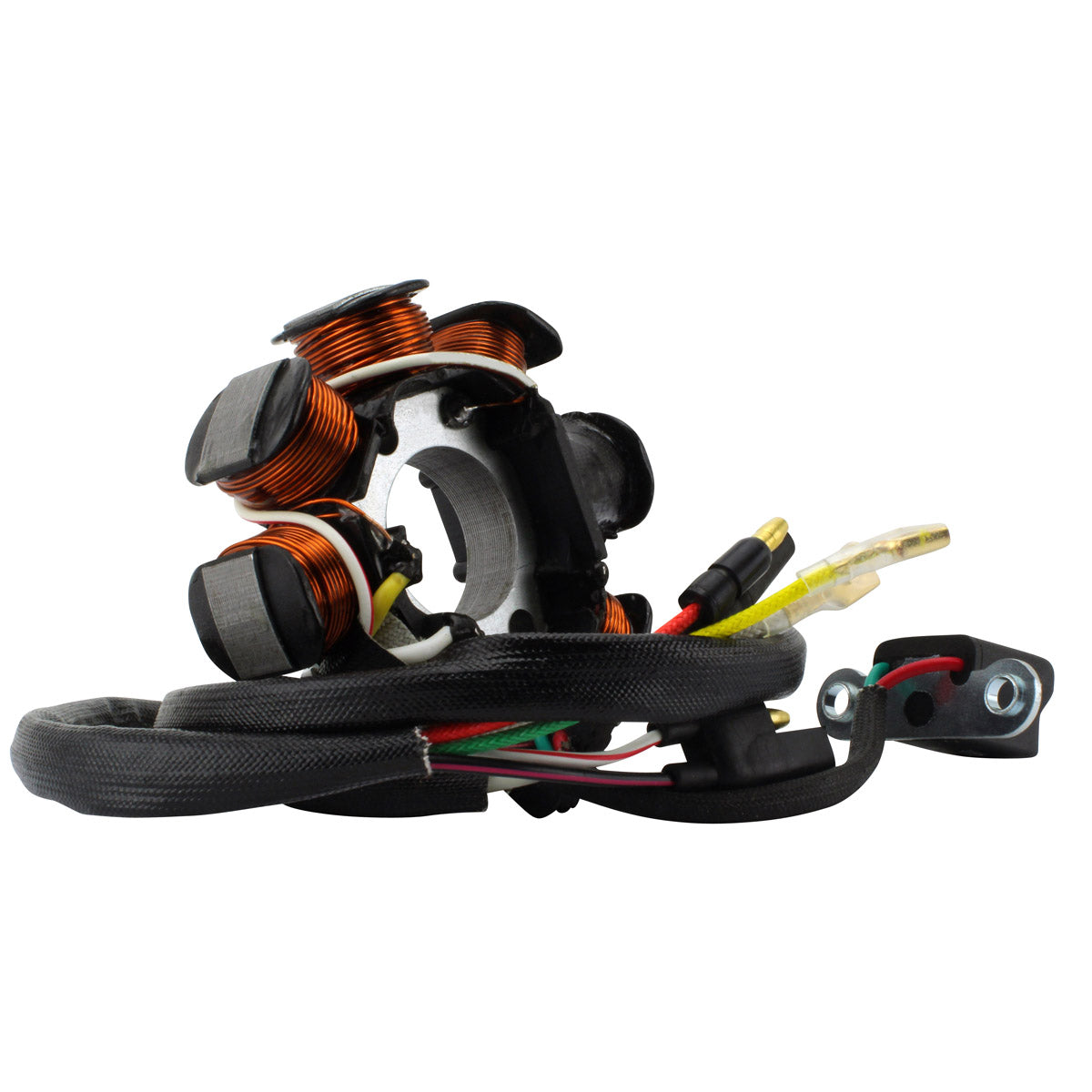

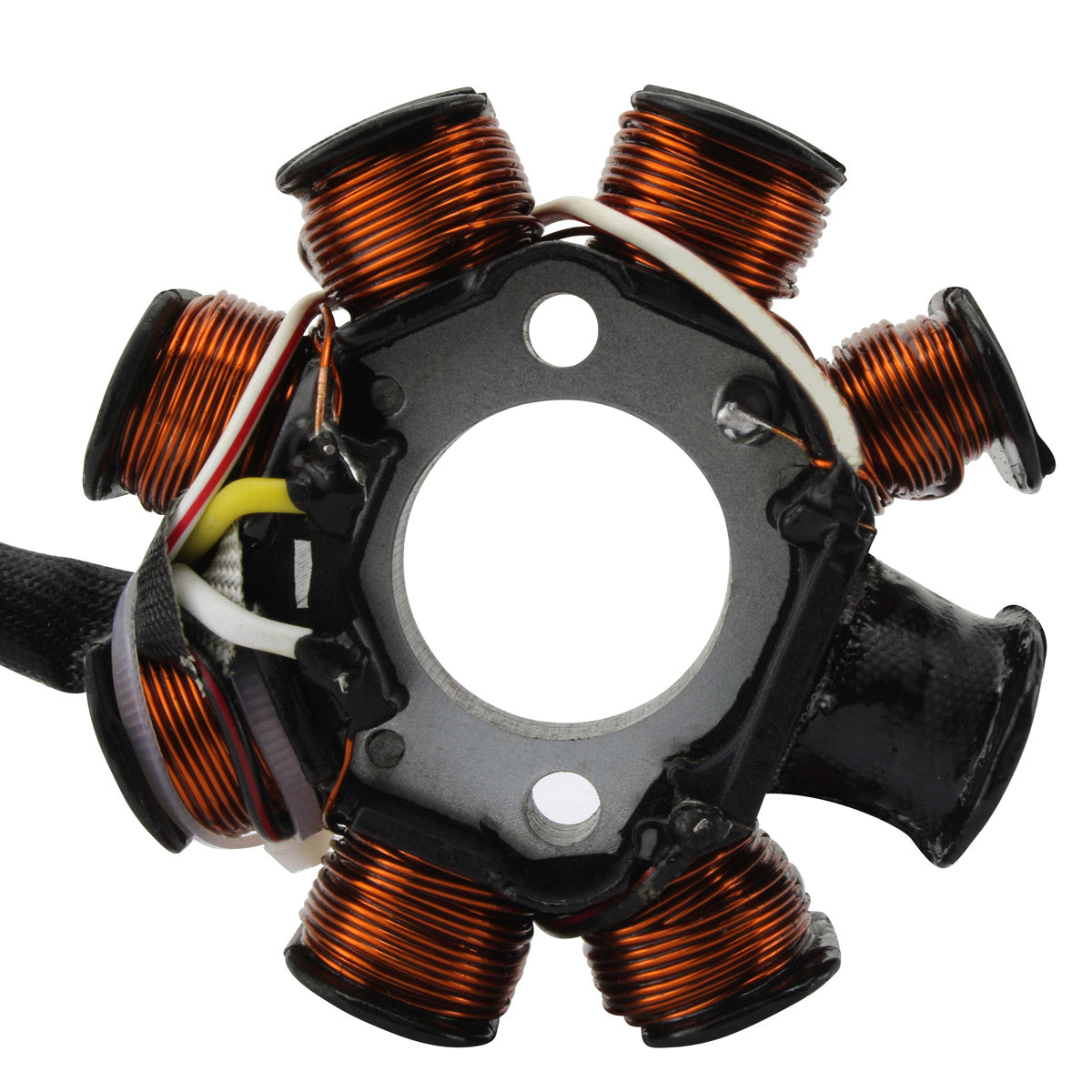

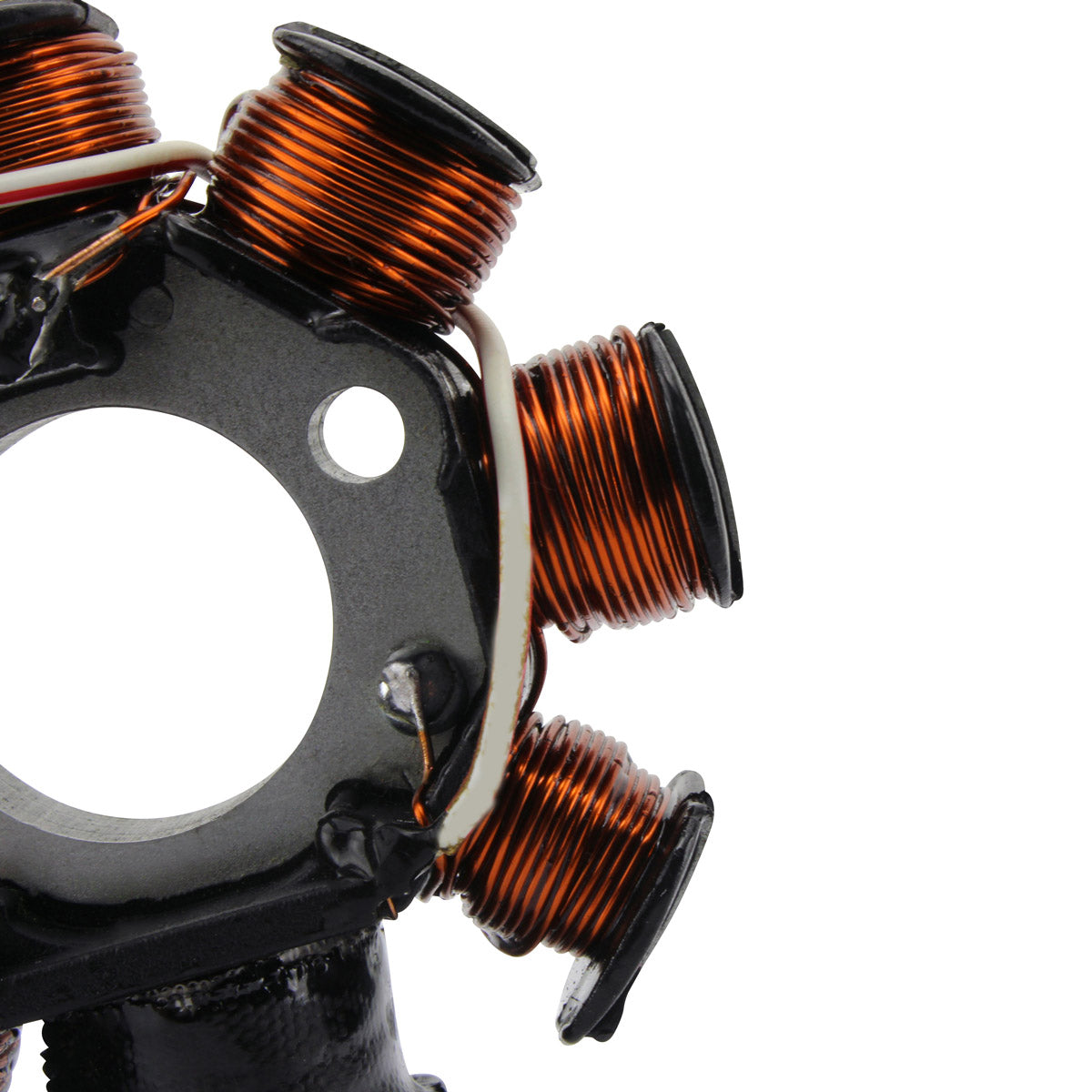

Brand new aftermarket Stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation

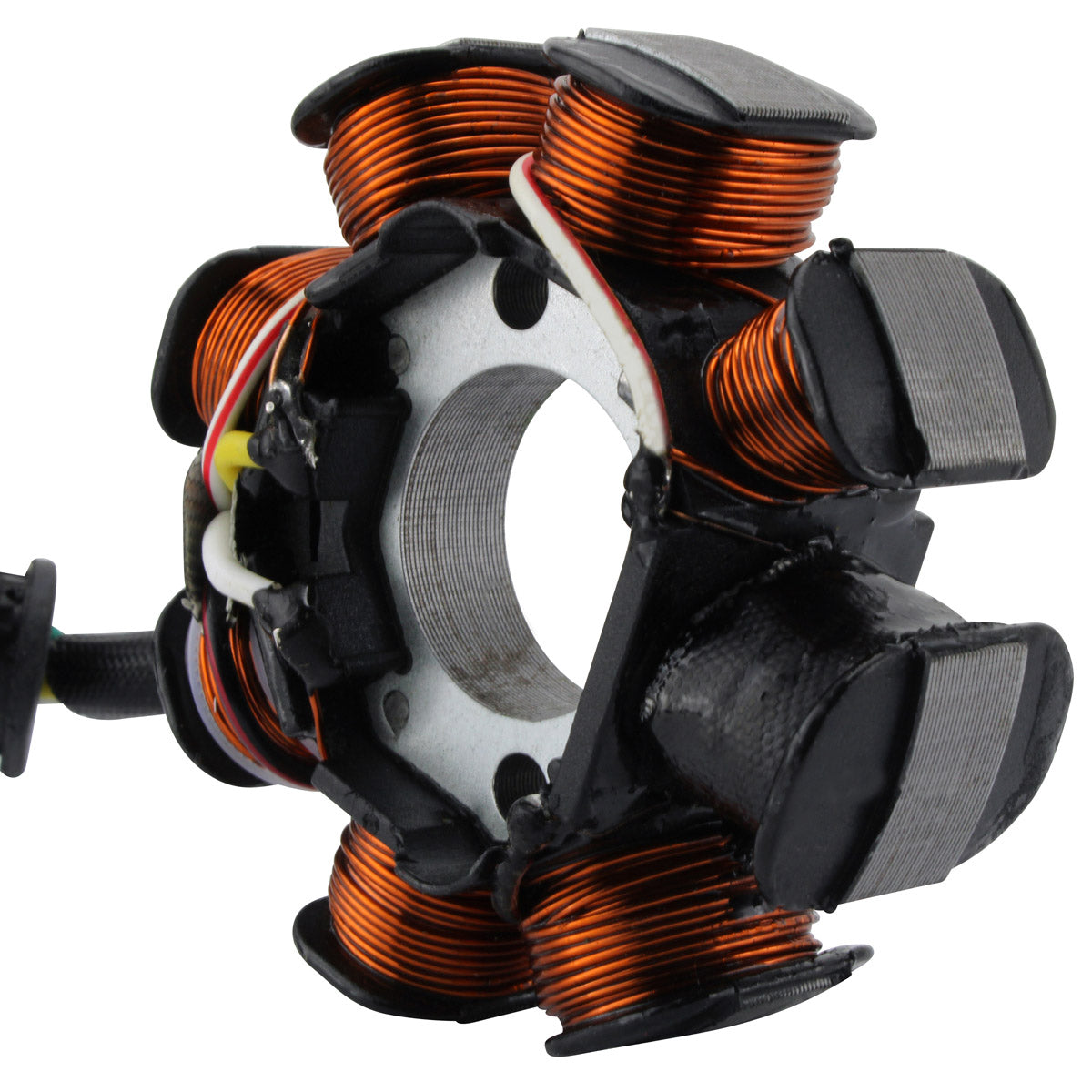

  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius

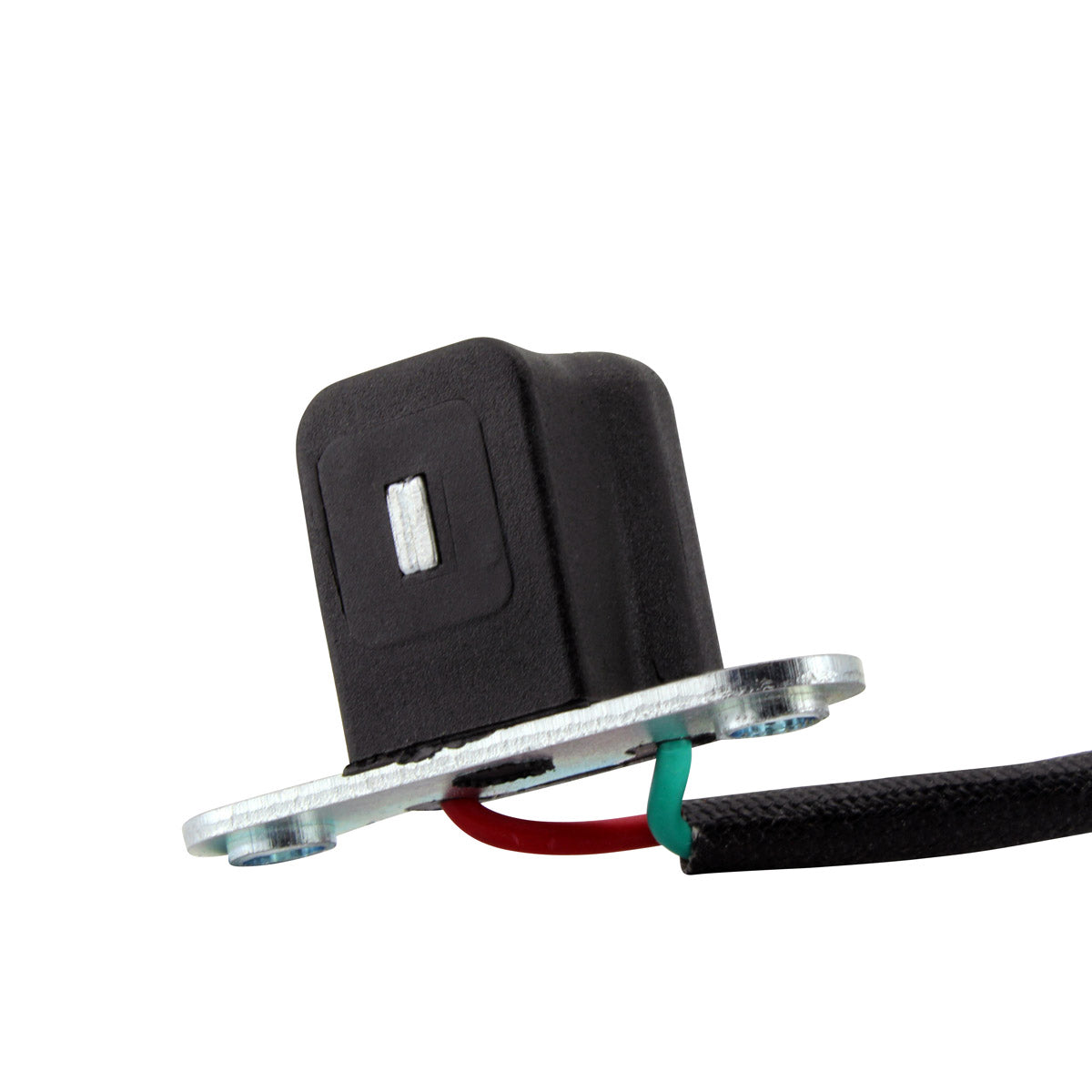

  • Pick up pulsar coil included

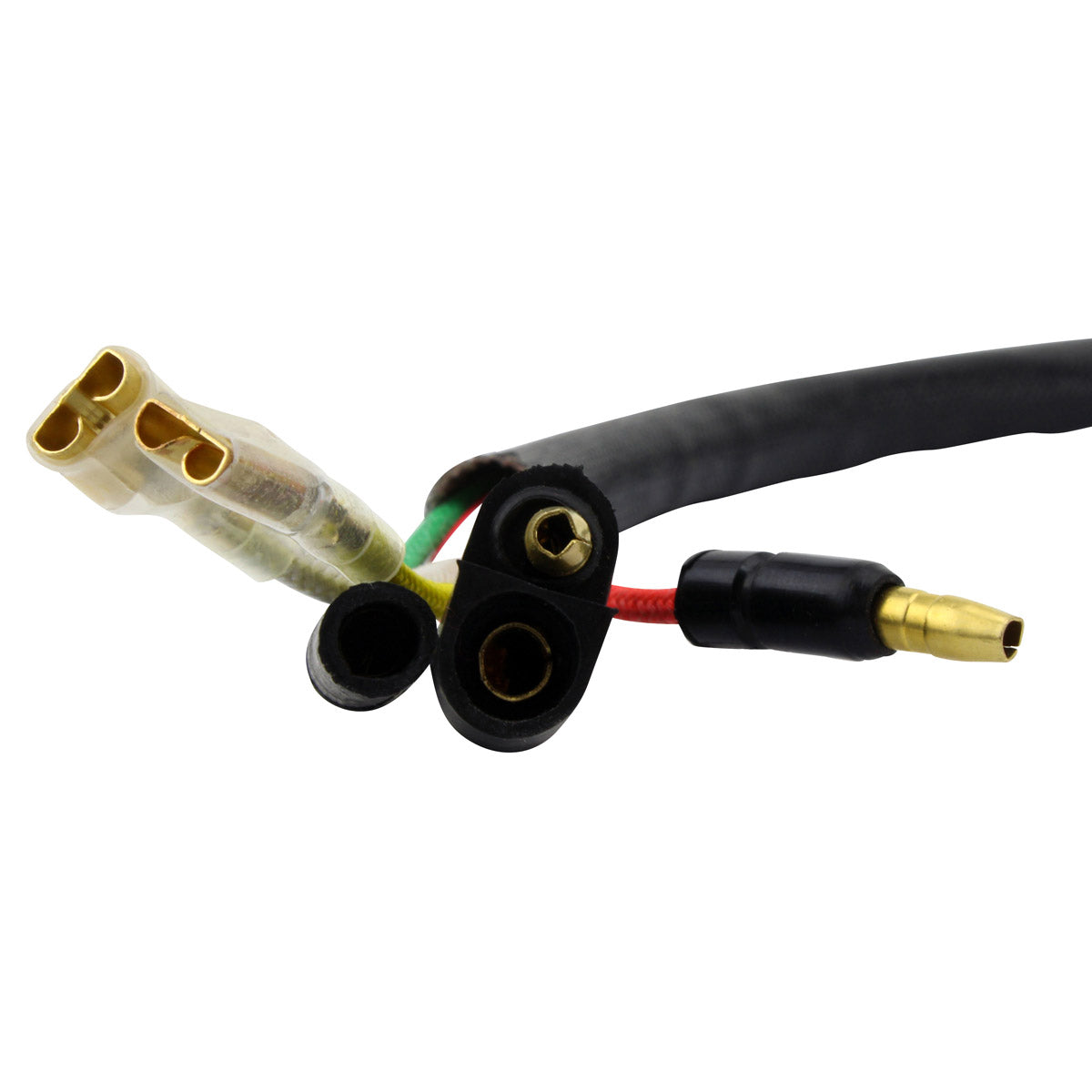

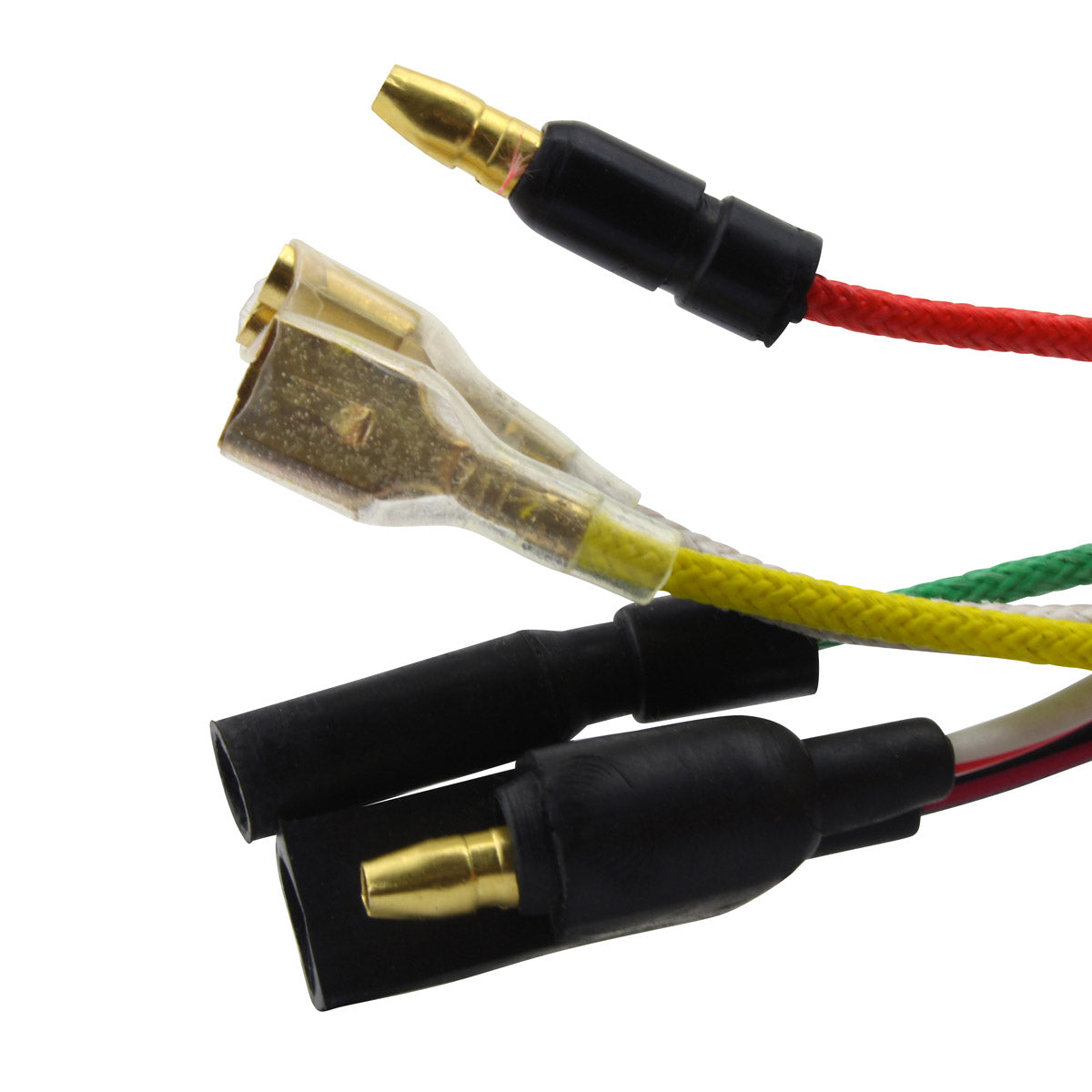

  • Connectors included

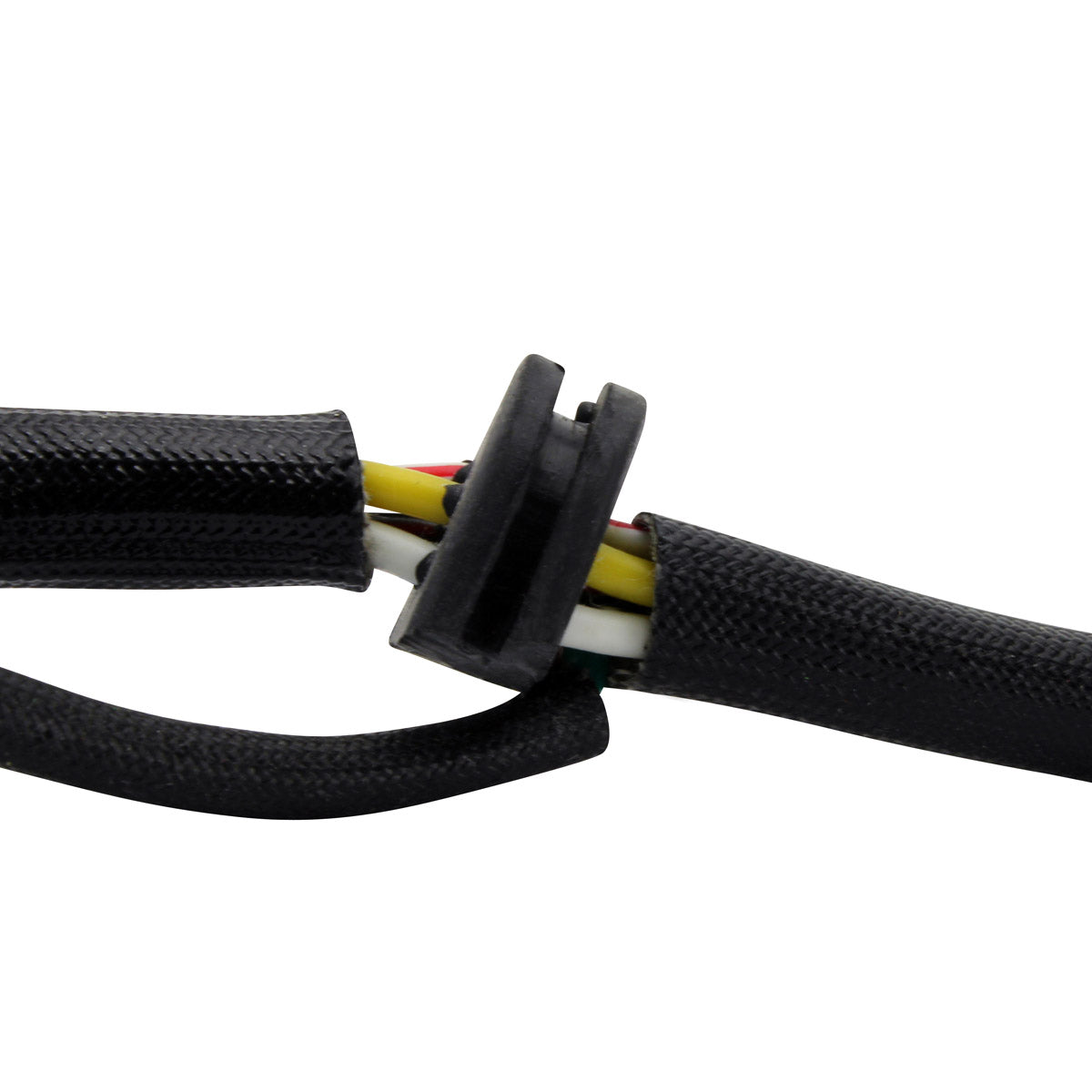

  • Rubber grommet included
  • Back Plate included
  • All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications

Dimensions:
Interior diameter: 29 mm
Exterior diameter: 84 mm
Thickness: 12 mm
Length of wires stator to grommet: 85 mm
Length of wires grommet to plug: 590 mm
Length of pickup coil's wire to grommet: 65 mm

Other specifications:
Number of wires: 6
Number of plugs: 4
Number of pins: 6
Number of poles: 8
Wire to wire resistance:
Alternator: White to Yellow = 0.5 ohms +-20%
Alternator: White to ground = O.L
Pickup: Black/Red to Red/White= 14 ohms +-20%
Source: Green to Red = 104 ohms +-20%

Interchange Part Nº
  • 50339004200

Installation

Before installing your new stator

  • Check the AC output of the stator
  • Replace any burned or corroded connectors on stator and regulator rectifier
  • Check and repair any melted wiring
  • Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
